Same model may have multiple batches, images only for reference.

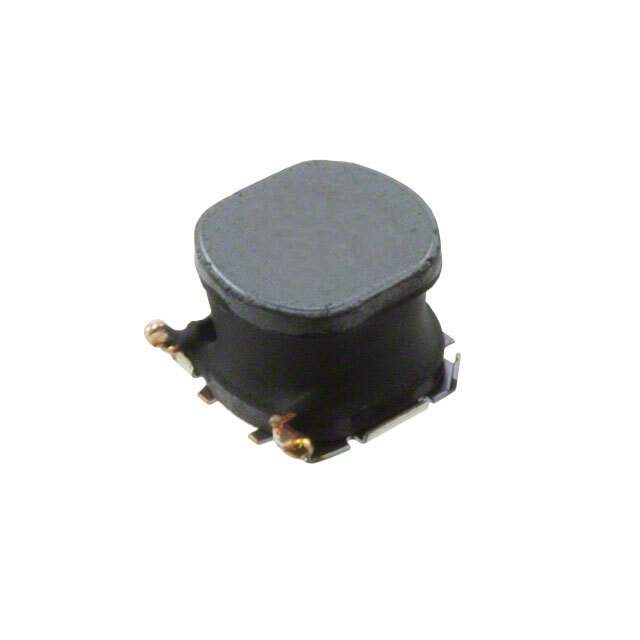

VLP6045LT-150M Real Image
Same model may have multiple batches, images only for reference.

VLP6045LT-150M

Part No VLP6045LT-150M
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description Inductors for Power Circuits Wound Ferrite VLPseries
Datasheet
VLP6045LT-150M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Series VLP
Packaging Reel - TR
Type Wirewound
Material - Core Ferrite
Inductance 15μH
Tolerance ±20%
Current Rating 2.3A
Current - Saturation 2.5A
Shielding Shielded
DC Resistance (DCR) 112 mOhm Max
Operating Temperature Range -40°C ~ 105°C
Test Frequency 100kHz
Mounting SMD
Package Nonstandard
Size 0.268" L x 0.268" W (6.80mm x 6.80mm)
Height - Seated (Maximum) 0.177" (4.50mm)
Win Source Part Number 1279391-VLP6045LT-150M
Manufacturer Homepage www.tdk.com
Popularity Medium
Supply and Demand Status Limited
Family Name VLP
Introduction Date May 20, 2002
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian VLP6045LT-150M CAD Model

Description

The TDK Corporation VLP6045LT-150M is a wirewound inductor with a shielded construction and a nonstandard package.

  • Current Rating: 2.3A
  • Inductance: 15μH
  • Tolerance: ±20%
  • DC Resistance (DCR): 112 mOhm Max.
  • Material: Ferrite
  • Suitable for: Inductors, Coils, and Chokes
  • Operating Temperature Range: -40°C to 105°C
  • Packaging: Reel
