Same model may have multiple batches, images only for reference.

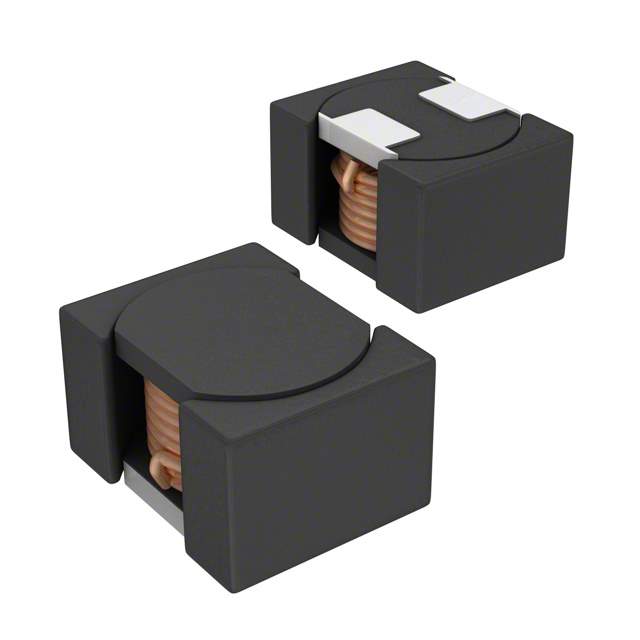

VLF252015MT-R68N Real Image
Same model may have multiple batches, images only for reference.

VLF252015MT-R68N

Part No VLF252015MT-R68N
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 680NH 3.38A 23 MOHM / Inductors for Power Circuits Wound Ferrite
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TDK Corporation
Packaging Reel
Part Status Obsolete (End Of Life)
Type Wirewound
Material - Core Ferrite
Inductance 680nH
Tolerance ±30%
Current Rating (Amps) 3.38A
Current - Saturation 1.54A
Shielding Shielded
DC Resistance (DCR) 23mOhm Max
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 1MHz
Mounting Style SMD
Manufacturer Package 1008 (2520 Metric)
Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Maximum) 0.059" (1.50mm)
Manufacturer Pack Quantity 2,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 806836-VLF252015MT-R68N
Ultra Librarian 3D Model Ultra Librarian VLF252015MT-R68N CAD Model

Description

{"ProductId":745417,"FormattedDescription":"

The TDK Corporation 806836-VLF252015MT-R68N is an obsolete wirewound type inductor.

  • Inductance: 680nH
  • Tolerance: ±30%
  • Core Material: Ferrite
  • Current Saturation: 1.54A
  • Mounting: SMD
  • Manufacturer Package: 1008 (2520 metric)
  • Temperature Range: -40°C to 105°C
  • Dimensions: 0.098" L x 0.079" W (2.50mm x 2.00mm)
  • Supply and Demand Status: Balance
  • Current Rating: 3.38A
  • Inductance Frequency Test: 1MHz
"}
