Same model may have multiple batches, images only for reference.

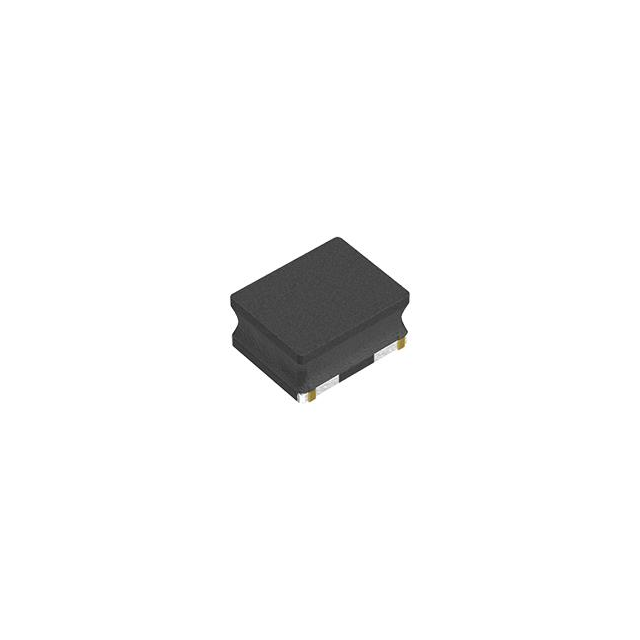

VLS252012CX-4R7M Real Image
Same model may have multiple batches, images only for reference.

VLS252012CX-4R7M

Part No VLS252012CX-4R7M
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 4.7UH 1.24A 210 MOHM
Datasheet
VLS252012CX-4R7M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 4.7μH
Tolerance ±20%
Current Rating 1.24A
Current - Saturation 1.1A
DC Resistance (DCR) 210 mOhm Max
Temperature Range - Operating -40°C to 105°C
Frequency - Test 1MHz
Mounting SMD (SMT)
Case / Package 2520
Height - Seated (Max) 0.047" (1.20mm)
Win Source Part Number 1117248-VLS252012CX-4R7M
Popularity Medium
Supply and Demand Status Balance
Quantity per package 2k pcs
Ultra Librarian 3D Model Ultra Librarian VLS252012CX-4R7M CAD Model

Description

The TDK Corporation VLS252012CX-4R7M is a wirewound inductor that features an inductance of 4.7μH and a current rating of 1.24A.

  • Tolerance: ±20%
  • DC Resistance (DCR): 210 mOhm Max
  • Case: 2520
  • Operating Temperature: -40°C to 105°C
