Same model may have multiple batches, images only for reference.

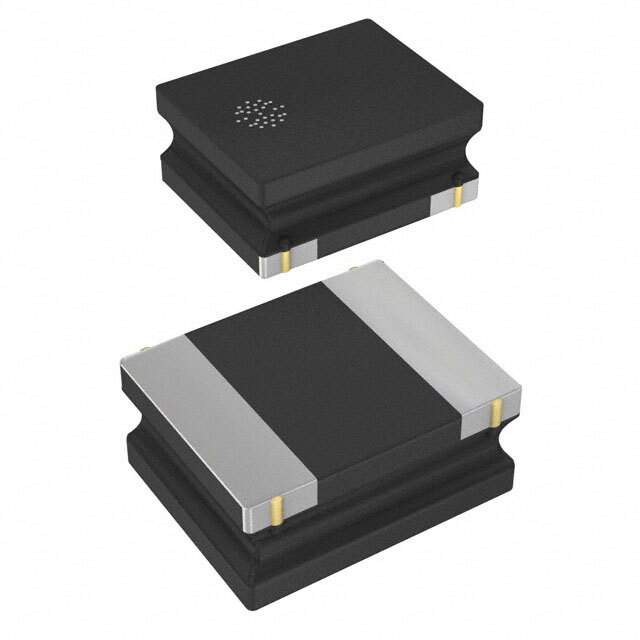

VLS252012HBU-4R7M Real Image
Same model may have multiple batches, images only for reference.

VLS252012HBU-4R7M

Part No VLS252012HBU-4R7M
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 4.7UH 1.36A 295MOHM SM / 4.7 µH Shielded Drum Core, Wirewound Inductor 1.36 A 295mOhm Max 1008 (2520 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr TDK Corporation
Series VLS-HBU
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Metal
Inductance 4.7 µH
Tolerance ±20%
Current Rating (Amps) 1.36 A
Current - Saturation (Isat) 1.67A
Shielding Shielded
DC Resistance (DCR) 295mOhm Max
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 1 MHz
Mounting SMD (SMT)
Package / Case 1008 (2520 Metric)
Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.047" (1.20mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Names 445-174597-6,445-174597-2,445-174597-1
Standard Package 2,000
Win Source Part Number 975213-VLS252012HBU-4R7M
Ultra Librarian 3D Model Ultra Librarian VLS252012HBU-4R7M CAD Model

Description

The VLS-HBU series fixed inductor is a shielded drum core, wirewound inductor with an inductance of 4.7μH and a tolerance of ±20%.

  • DC Resistance: 295mOhm Max
  • Current Rating: 1.36A
  • Package/Case: 1008 (2520 Metric)
  • Height: 0.047" (1.20mm)
  • Temperature Range: -40°C to 105°C
