Same model may have multiple batches, images only for reference.

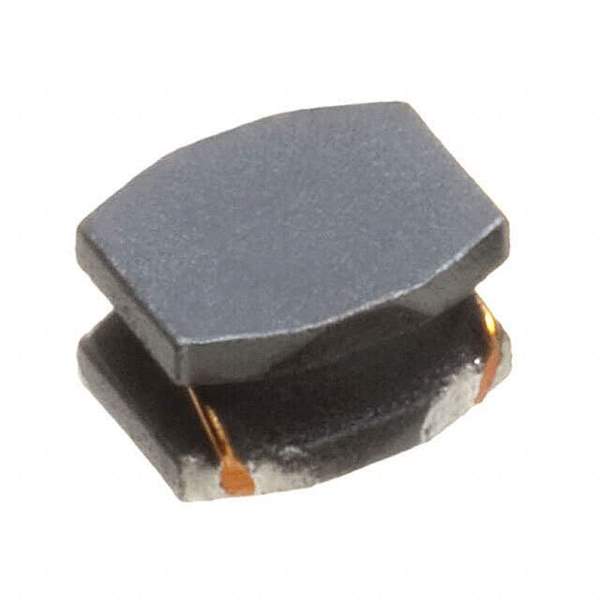

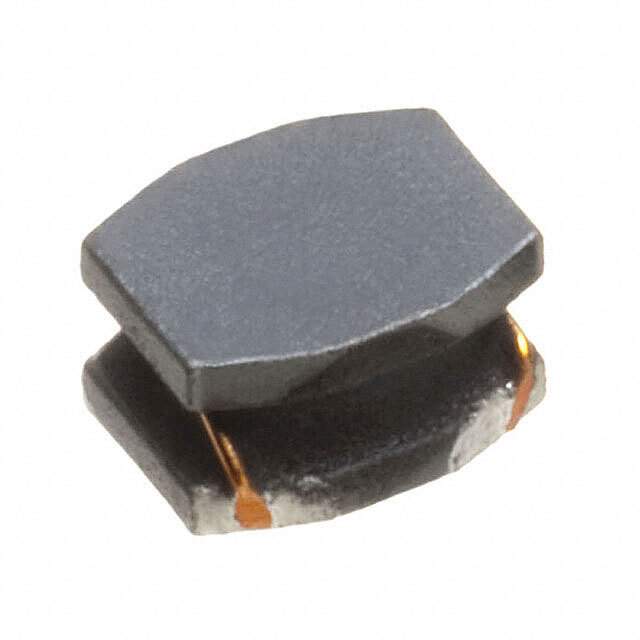

VLS252015T-3R3M1R0 Real Image
Same model may have multiple batches, images only for reference.

VLS252015T-3R3M1R0

Part No VLS252015T-3R3M1R0
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 3.3UH 1A 218 MOHM SMD
Datasheet
VLS252015T-3R3M1R0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Not For New Designs
Type Wirewound
Inductance 3.3μH
Tolerance ±20%
Current Rating 1A
Current - Saturation 1.4A
DC Resistance (DCR) 218 mOhm Max
Temperature Range - Operating -40°C to 105°C
Frequency - Test 1MHz
Mounting SMD (SMT)
Case / Package 1008 (2520 Metric)
Height - Seated (Max) 0.039" (1.00mm)
Win Source Part Number 036380-VLS252015T-3R3M1R0
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian VLS252015T-3R3M1R0 CAD Model

Description

The TDK Corporation VLS252015T-3R3M1R0 is a wirewound inductor that has a current rating of 1A and an inductance of 3.3μH.

  • Height: 0.039" (1.00mm)
  • Mounting: SMD (SMT) technology
  • Tolerance: ±20%
  • Current Saturation: 1.4A
  • Frequency Test: 1MHz
  • DC Resistance (DCR): 218 mOhm Max
  • Suitable for: use in Inductors, Coils, and Chokes
  • Temperature Range: -40°C to 105°C
  • Packaging: reel - TR
  • Status: not for new designs
  • Alternative parts: available (cross-reference)
  • Supply and demand: sufficient
