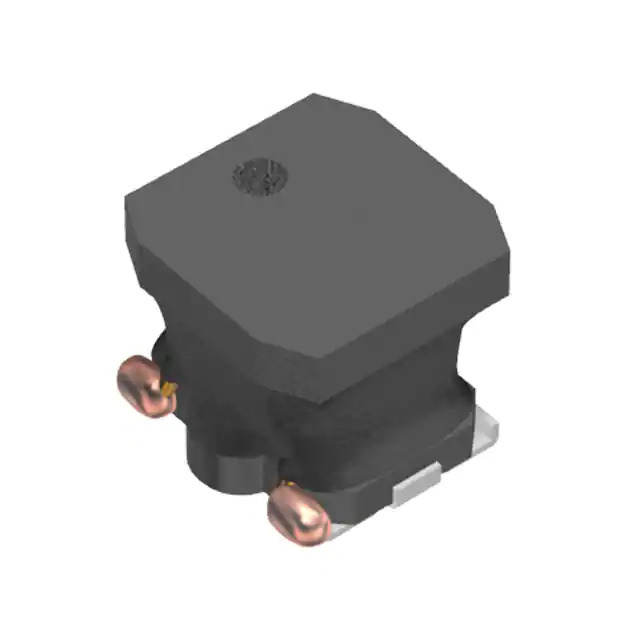

VLS5045EX-100M-H TDK Corporation
Same model may have multiple batches, images only for reference.

VLS5045EX-100M-H

Part No VLS5045EX-100M-H
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 10UH 2.5A 79.3MOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr TDK Corporation
Series VLS-EX-H
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 10 µH
Tolerance ±20%
Current Rating (Amps) 2.5 A
Current - Saturation (Isat) 3.1A
Shielding Shielded
DC Resistance (DCR) 79.3mOhm Max
Q @ Freq -
Frequency - Self Resonant -
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Features -
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package -
Size / Dimension 0.209" L x 0.197" W (5.30mm x 5.00mm)
Height - Seated (Max) 0.177" (4.50mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1370491-VLS5045EX-100M-H
Ultra Librarian 3D Model Ultra Librarian VLS5045EX-100M-H CAD Model

Description

The TDK Corporation VLS-EX-H series inductor is a drum core, wirewound inductor that is designed for surface mount applications.

  • Temperature Range: -40°C to 125°C
  • Package Size: Nonstandard
  • Inductance: 10 µH
  • Tolerance: ±20%
  • Current Rating: 2.5 A
  • Saturation Current: 3.1 A
  • Shielding: Shielded
  • DC Resistance (DCR): 79.3 mOhm
