Same model may have multiple batches, images only for reference.

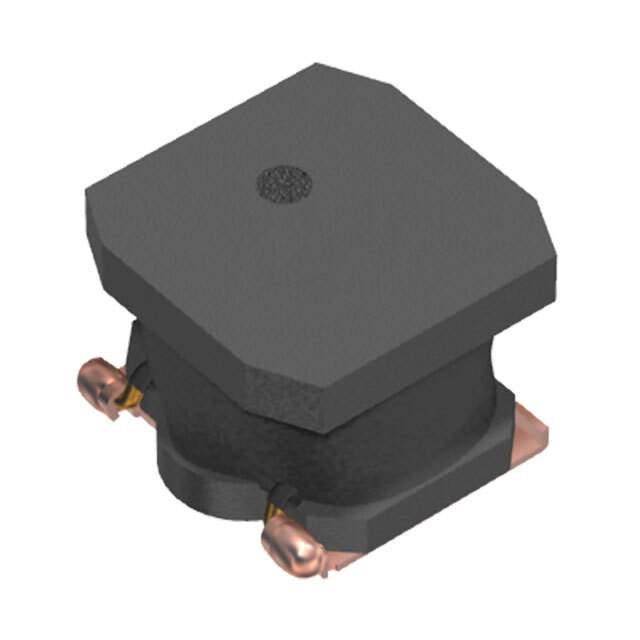

VLS6045EX-3R6N Real Image
Same model may have multiple batches, images only for reference.

VLS6045EX-3R6N

Part No VLS6045EX-3R6N
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 3.6UH 4.9A 24 MOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TDK Corporation
Packaging Reel
Type Wirewound
Material - Core Ferrite
Inductance 3.6μH
Tolerance ±30%
Current Rating (Amps) 4.9A
Shielding Shielded
DC Resistance (DCR) 24mOhm
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 100kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Dimension 0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Maximum) 0.177" (4.50mm)
Manufacturer Pack Quantity 1,500
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 803328-VLS6045EX-3R6N
Ultra Librarian 3D Model Ultra Librarian VLS6045EX-3R6N CAD Model

Description

TDK Corporation introduces the VLS6045EX-3R6N model, a wirewound type inductor with a shielding feature.

  • Inductance: 3.6μH
  • Tolerance: ±30%
  • Mounting Style: SMD
  • Material-Core: Ferrite
  • DC Resistance (DCR): 24mOhm
  • Temperature Range - Operating: -40°C ~ 105°C
  • Dimension: 0.236" L x 0.236" W (6.00mm x 6.00mm)
  • Height - Seated (Maximum): 0.177" (4.50mm)
  • Manufacturer Pack Quantity: 1,500
  • Current Rating (Amps): 4.9A
  • Inductance Frequency - Test: 100kHz
  • Supply and Demand Status: Balance
