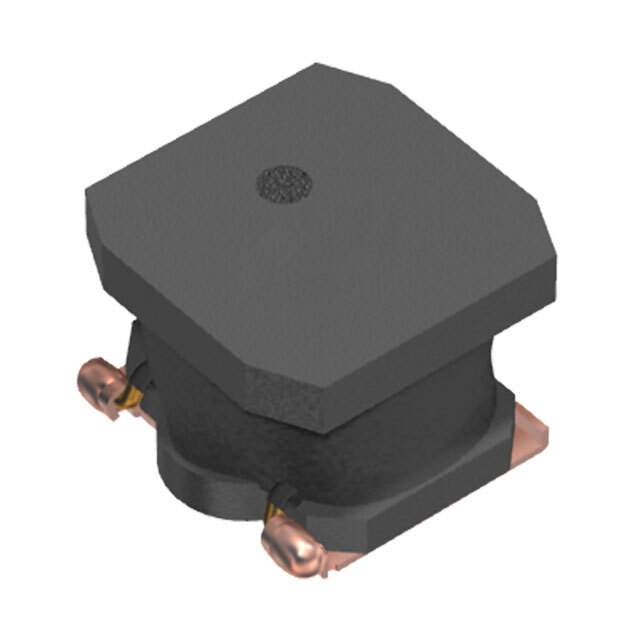

VLS6045EX-470M Real Image
Same model may have multiple batches, images only for reference.

VLS6045EX-470M

Part No VLS6045EX-470M
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 47UH 1.3A 299 MOHM SMD / Wound Ferrite
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TDK Corporation
Packaging Reel
Type Wirewound
Material - Core Ferrite
Inductance 47μH
Tolerance ±20%
Current Rating (Amps) 1.3A
Current - Saturation 1.8A
Shielding Shielded
DC Resistance (DCR) 299mOhm Max
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 100kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Dimension 0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Maximum) 0.177" (4.50mm)
Manufacturer Pack Quantity 1,500
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 807309-VLS6045EX-470M
Ultra Librarian 3D Model Ultra Librarian VLS6045EX-470M CAD Model

Description

The TDK Corporation VLS6045EX-470M is a shielded SMD inductor manufactured by TDK Corporation.

  • Type: Wirewound
  • Inductance: 47μH
  • Tolerance: ±20%
  • Core Material: Ferrite
  • DC Resistance (DCR): 299mOhm (Max)
  • Temperature Range: -40°C to 105°C
  • Current Rating: 1.3A
  • Dimensions: 0.236" L x 0.236" W (6.00mm x 6.00mm)
  • Height: 0.177" (4.50mm)
  • Manufacturer Package: Non-standard
  • Manufacturer Pack Quantity: 1,500
