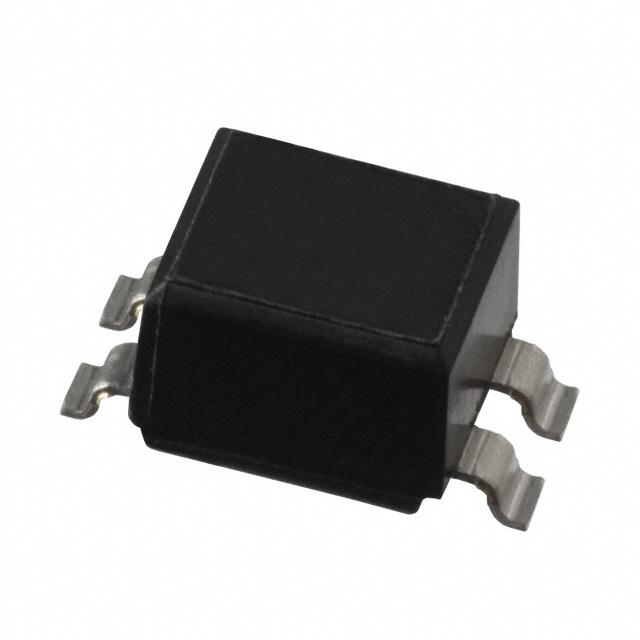

ZJYS5103-2PL TDK Corporation
Same model may have multiple batches, images only for reference.

ZJYS5103-2PL

Part No ZJYS5103-2PL
Manufacturer TDK Corporation
Catalog Common Mode Chokes
Description CMC 3A 2LN 100 OHM SMD
Datasheet
ZJYS5103-2PL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Obsolete(EOL)
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 100 Ohm @ 100MHz
Current Rating (Max) 3A
DC Resistance (DCR) (Max) 30 mOhm
Voltage Rating - DC 50V
Temperature Range - Operating -25°C to 85°C
Mounting SMD (SMT)
Height (Max) 0.200" (5.08mm)
Dimension Horizontal, 4 Gull Wing
Win Source Part Number 143151-ZJYS5103-2PL
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian ZJYS5103-2PL CAD Model

Description

The TDK Corporation ZJYS5103-2PL is a signal line filter manufactured by TDK Corporation.

  • Voltage Rating: 50V
  • Current Rating: 3A
  • Mounting: SMD (SMT)
  • Height: 0.200" (5.08mm)
  • Suitability: Suitable for a wide range of applications
  • Impedance: 100 Ohm @ 100MHz
  • Maximum DC Resistance (DCR): 30 mOhm
  • Benefit: Reliable and efficient solution for signal line filter applications
