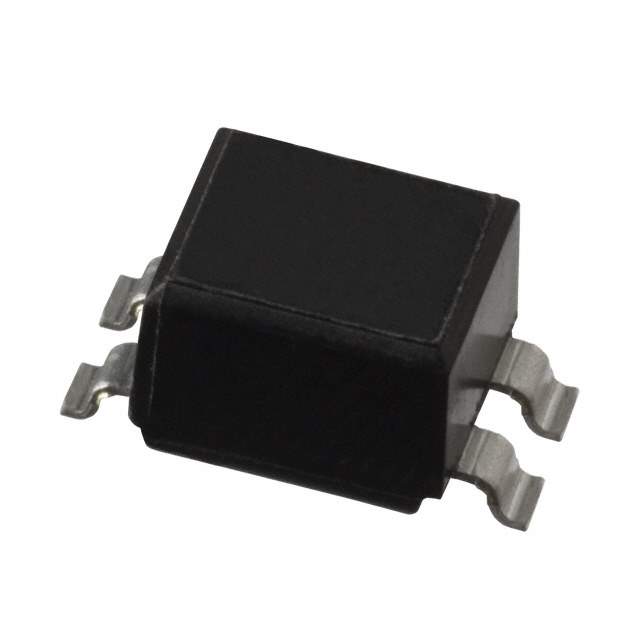

Same model may have multiple batches, images only for reference.

ZJYS51R5-2PT-G

Name: ZJYS51R5-2PT-G
Brand: TDK Corporation
SKU: 412593
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	ZJYS51R5-2PT-G
Manufacturer	TDK Corporation
Catalog	Common Mode Chokes
Description	CMC 2A 2LN 200 OHM SMD
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Filters
Manufacturer	TDK Corporation
Packaging	Reel - TR
Filter Type	Signal Line
Number of Lines	2
Impedance @ Frequency	200 Ohm @ 100MHz
Current Rating (Max)	2A
DC Resistance (DCR) (Max)	120 mOhm
Voltage Rating - DC	50V
Temperature Range - Operating	-25°C to 85°C
Mounting	SMD (SMT)
Height (Max)	0.200" (5.08mm)
Dimension	Horizontal, 4 Gull Wing
Win Source Part Number	054563-ZJYS51R5-2PT-G
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian ZJYS51R5-2PT-G CAD Model

Alternative Products

Description

The TDK Corporation 054563-ZJYS51R5-2PT-G filter is a high-quality component designed for use in signal line applications.

Voltage Rating: 50V
Current Rating (Max): 2A
Mounting Type: Surface Mount
Height (Max): 0.200 inches
Number of Lines: Two
Impedance @ Frequency: 200 Ohm @ 100MHz
DC Resistance (DCR): 120 mOhm
Series: TDK Corporation
Popularity: Medium
Supply and Demand Status: Balanced
Temperature Range: -25°C to 85°C
