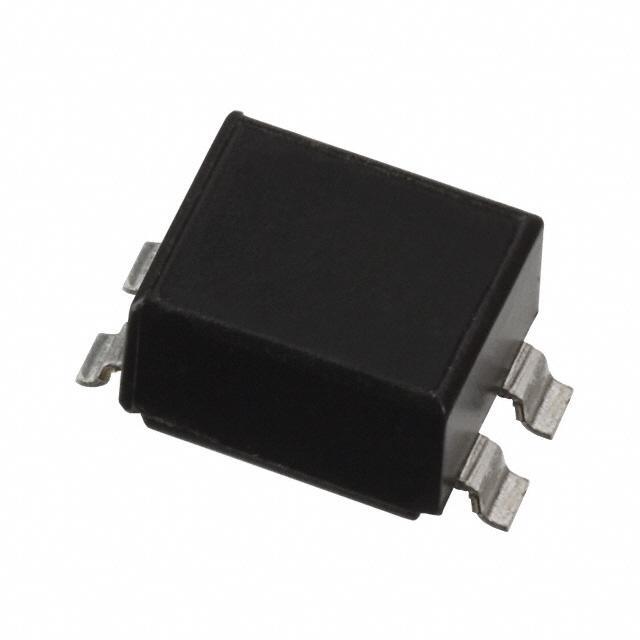

Same model may have multiple batches, images only for reference.

ZJYS81R5-2PL51-G01

Name: ZJYS81R5-2PL51-G01
Brand: TDK Corporation
SKU: 412606
Availability: InStock
Rating: 4.93 (48 reviews)

Get a Quote

Part No	ZJYS81R5-2PL51-G01
Manufacturer	TDK Corporation
Catalog	Common Mode Chokes
Description	CMC 500MA 2LN 2KOHM SMD AEC-Q200
Datasheet	ZJYS81R5-2PL51-G01 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Filters
Manufacturer	TDK Corporation
Packaging	Reel - TR
Filter Type	Signal Line
Number of Lines	2
Impedance @ Frequency	2 kOhm @ 10MHz
Current Rating (Max)	500mA
DC Resistance (DCR) (Max)	300 mOhm
Voltage Rating - DC	80V
Temperature Range - Operating	-40°C to 125°C
Ratings	AEC-Q200
Mounting	SMD (SMT)
Height (Max)	0.197" (5.00mm)
Dimension	Horizontal, 4 Gull Wing
Win Source Part Number	054565-ZJYS81R5-2PL51-G01
Family Name	ZJYS
Introduction Date	July 26, 2001
ECCN	EAR99
Estimated EOL Date	Obsolete
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian ZJYS81R5-2PL51-G01 CAD Model

Alternative Products

Description

The TDK Corporation ZJYS81R5-2PL51-G01 is a signal line filter with a voltage rating of 80V and a maximum current rating of 500mA.

Mounting Technology: SMD (SMT)
Height: 0.197" (5.00mm)
Lines: 2 lines
Impedance: 2 kOhm @ 10MHz
DC Resistance (DCR) (Max): 300 mOhm
Family: ZJYS family
Rated: AEC-Q200
Temperature Range: -40°C to 125°C
Usage: Common-used part
Popularity: Popular in the market
