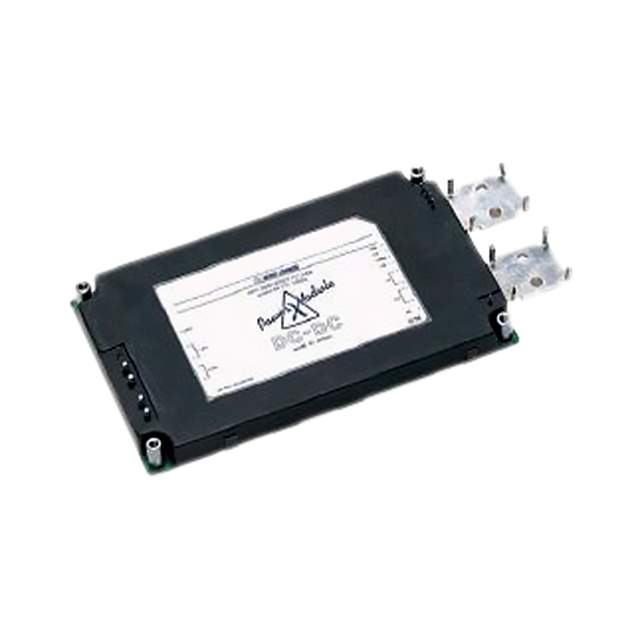

Same model may have multiple batches, images only for reference.

PH100S48-24

Name: PH100S48-24
Brand: TDK-Lambda Americas Inc.
SKU: 273680
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	PH100S48-24
Manufacturer	TDK-Lambda Americas Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	CONVERT DC-DC 24V 100W 4.2A
Datasheet	PH100S48-24 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount
Family	DC DC Converters
Manufacturer	TDK-Lambda-Americas-Inc.
Series	PH-S
Packaging	Bulk
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	36V
Voltage - Input (Max)	76V
Voltage - Output 1	24V
Current - Output (Max)	4.2A
Power (Watts) - Manufacture Series	100W
Voltage - Isolation	3kV (3000V)
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OTP, OVP
Mounting Style	Through Hole
Package	Module
Size / Dimension	3.85" L x 1.61" W x 0.50" H (86.0mm x 41.0mm x 12.7mm)
Operating Temperature Range	-20°C ~ 85°C
Power (Watts) - Max	100W
Win Source Part Number	209872-PH100S48-24
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian PH100S48-24 CAD Model

Alternative Products

Description

The TDK-Lambda-Americas-Inc. 209872-PH100S48-24 DC DC converter is a PH-S series isolated module.

Voltage Isolation: 3kV (3000V)
Maximum Output Power: 100W
Mounting Style: Through-Hole
Operating Temperature Range: -20°C ~ 85°C
Features: Remote On/Off, Overcurrent Protection (OCP), Overtemperature Protection (OTP), and Overvoltage Protection (OVP)
Packaging: Bulk
Dimension: 3.85" L x 1.61" W x 0.50" H (86.0mm x 41.0mm x 12.7mm)
Supply and Demand Status: Limited
