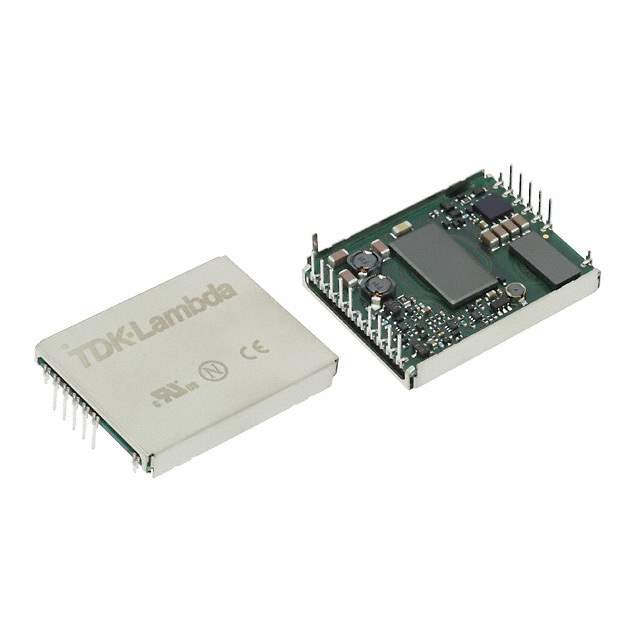

Same model may have multiple batches, images only for reference.

CC30-2405SFP-E

Name: CC30-2405SFP-E
Brand: TDK-Lambda Americas Inc.
SKU: 1350912
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	CC30-2405SFP-E
Manufacturer	TDK-Lambda Americas Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5V 30W / Isolated Module DC DC Converter 1 Output 5V 6A 18V - 36V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	TDK-Lambda Americas Inc
Series	CC-P-E (30W)
Package	Tray
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	18V
Voltage - Input (Max)	36V
Voltage - Output 1	5V
Current - Output (Max)	6A
Power (Watts)	30 W
Voltage - Isolation	1 kV
Applications	ITE (Commercial)
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	89%
Mounting Type	Through Hole
Package / Case	20-DIP Module, 17 Leads
Size / Dimension	1.51" L x 1.32" W x 0.33" H (38.4mm x 33.5mm x 8.3mm)
Control Features	Enable, Active Low
Base Product Number	CC30-2405
Standard Package	10
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
California Prop 65	Warning Information
Win Source Part Number	1350912-CC30-2405SFP-E
Ultra Librarian 3D Model	Ultra Librarian CC30-2405SFP-E CAD Model

Alternative Products

Description

The CC30-2405SFP-E is a power supply board mount DC DC converter component that belongs to the CC-P-E (30W) series.

Packaging: Tray
Standard Package Quantity: 10
Power: 30W
Efficiency: 89%
Isolation: Isolated
Voltage Isolation: 1 kV
Input Voltage: 18V to 36V
Output Voltage: 5V
Output Current: 6A
Features: Enable, Active Low
Mounting Type: Through Hole
Package / Case: 20-DIP Module, 17 Leads
Operating Temperature Range: -40°C to 85°C
ECCN: EAR99
Manufacturer: TDK-Lambda Americas Inc
Product: DC DC Converters
