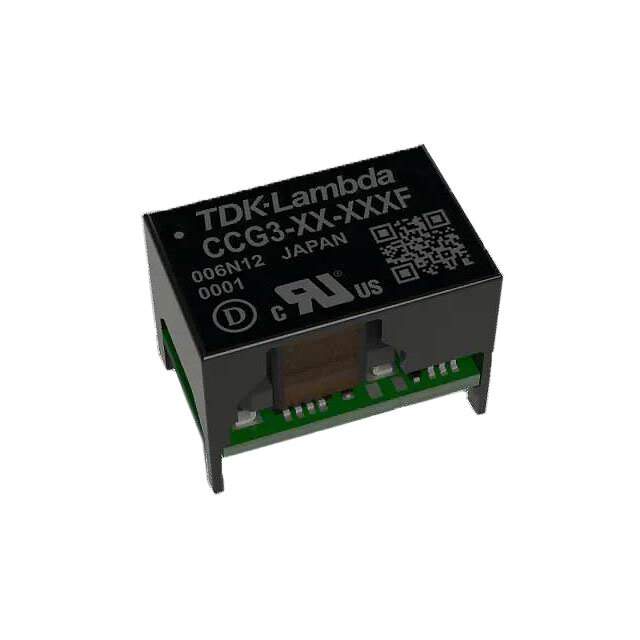

Same model may have multiple batches, images only for reference.

CCG3-24-05SF

Name: CCG3-24-05SF
Brand: TDK-Lambda Americas Inc.
SKU: 1349898
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	CCG3-24-05SF
Manufacturer	TDK-Lambda Americas Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5V 3W / Isolated Module DC DC Converter 1 Output 5V 600mA 9V - 36V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	TDK-Lambda Americas Inc
Series	CCG1R5-10 (3W)
Package	Tray
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	9V
Voltage - Input (Max)	36V
Voltage - Output 1	5V
Current - Output (Max)	600mA
Power (Watts)	3 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	Adjustable Output, Remote On/Off, Remote Sense
Temperature Range - Operating	-40°C ~ 100°C (With Derating)
Efficiency	82%
Mounting Type	Through Hole
Package / Case	6-DIP Module
Size / Dimension	0.62" L x 0.41" W x 0.45" H (15.7mm x 10.4mm x 11.5mm)
Control Features	Enable, Active Low
Standard Number	62368-1
Standard Package	1
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1349898-CCG3-24-05SF
Ultra Librarian 3D Model	Ultra Librarian CCG3-24-05SF CAD Model

Alternative Products

Description

The CCG3-24-05SF is a DC-DC converter designed for use in various electronic devices. It has an adjustable output feature, remote on/off and remote sense.

Adjustable Output: Yes
Remote On/Off: Yes
Remote Sense: Yes
Power (Watts): 3W
Voltage - Input: 9V to 36V
Voltage - Isolation: 1.5 kV
Number of Outputs: 1
Current - Output: 600mA
Efficiency: 82%
Packaging: Tray
Standard Package: 1
Application: Power Supplies, Board Mount, DC-DC Converters, Isolated Modules
Manufacturer: TDK-Lambda Americas Inc.
