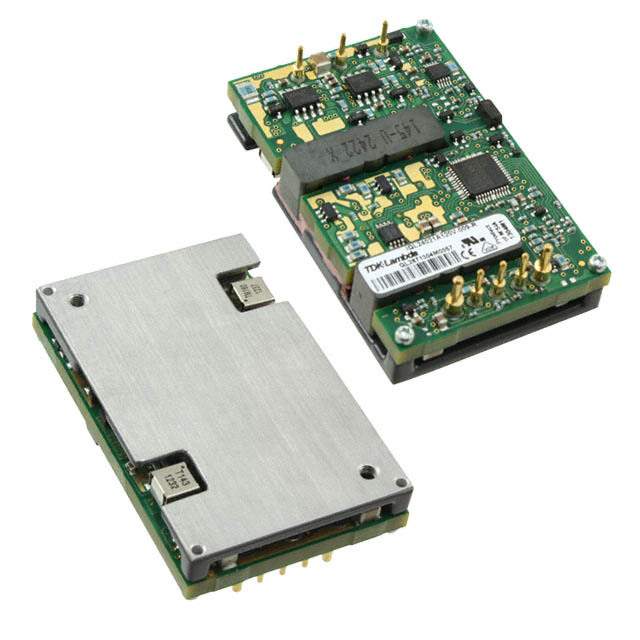

Same model may have multiple batches, images only for reference.

IQL24021A120V-001-R

Name: IQL24021A120V-001-R
Brand: TDK-Lambda Americas Inc.
SKU: 1339362
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	IQL24021A120V-001-R
Manufacturer	TDK-Lambda Americas Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 12V 252W / Isolated Module DC DC Converter 1 Output 12V 21A 20V - 36V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	TDK-Lambda Americas Inc
Series	iQL (252W)
Package	Tray
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	20V
Voltage - Input (Max)	36V
Voltage - Output 1	12V
Current - Output (Max)	21A
Power (Watts)	252 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OTP, OVP
Temperature Range - Operating	-40°C ~ 118°C
Efficiency	92%
Mounting Type	Through Hole
Package / Case	Quarter Brick
Size / Dimension	2.28" L x 1.45" W x 0.52" H (57.9mm x 36.8mm x 13.2mm)
Supplier Device Package	Quarter Brick
Base Product Number	IQL24021
Standard Package	72
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
California Prop 65	Warning Information
Win Source Part Number	1339362-IQL24021A120V-001-R
Ultra Librarian 3D Model	Ultra Librarian IQL24021A120V-001-R CAD Model

Alternative Products

Description

The iQL24021A120V-001-R is a DC-DC converter that is designed for use in electronic devices.

Series: iQL (252W)
Type: Isolated Module
Features: Remote On/Off, OCP, OTP, OVP
Packaging: Tray
Power: 252W
Voltage - Isolation: 1.5 kV
Output: Single
Output Current: 21A
Voltage - Input: 20V to 36V
Voltage - Output: 12V
Efficiency: 92%
Mounting Type: Through Hole
Applications: ITE (Commercial)
Operating Temperature: -40 to 118 degrees Celsius
