Same model may have multiple batches, images only for reference.

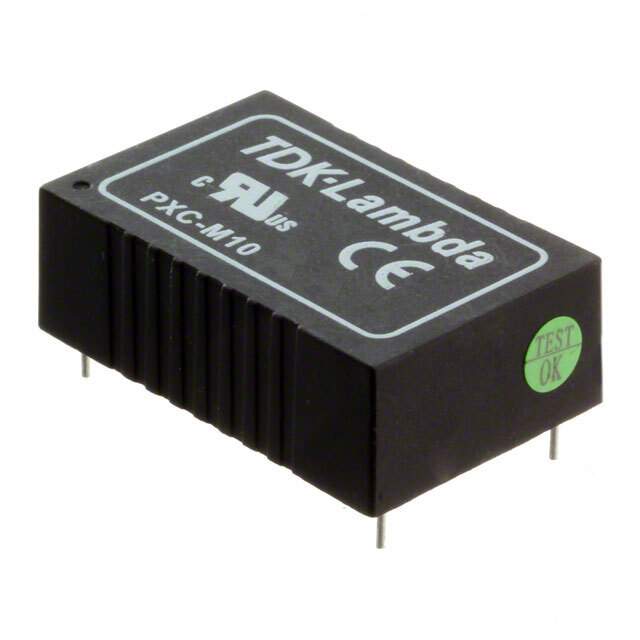

PXC-M10-24WD15-A Real Image
Same model may have multiple batches, images only for reference.

PXC-M10-24WD15-A

Part No PXC-M10-24WD15-A
Manufacturer TDK-Lambda Americas Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V 10W / Isolated Module DC DC Converter 2 Output 15V -15V 333mA, 333mA 9V - 36V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr TDK-Lambda Americas Inc
Series PXC-M10 (10W)
Package Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 9V
Voltage - Input (Max) 36V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 333mA, 333mA
Power (Watts) 10 W
Voltage - Isolation 5 kV
Applications Medical
Features OCP, OVP, SCP
Temperature Range - Operating -40°C ~ 105°C
Efficiency 88%
Mounting Type Through Hole
Package / Case 24-DIP Module, 6 Leads
Size / Dimension 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Base Product Number PXC-M10
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
California Prop 65 Warning Information
Win Source Part Number 1337621-PXC-M10-24WD15-A
Ultra Librarian 3D Model Ultra Librarian PXC-M10-24WD15-A CAD Model

Description

This electronic component is a DC-DC converter in the PXC-M10 series manufactured by TDK-Lambda Americas Inc.

  • Power: 10W
  • Type: Isolated Module
  • Features: OCP, OVP, SCP
  • Application: Medical
  • Outputs: 2
  • Output Current (Max): 333mA each
  • Input Voltage: 9V to 36V
  • Output Voltages: 15V and -15V
  • Efficiency: 88%
  • Package: Tube
  • Size: 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
  • Case: 24-DIP Module with 6 Leads
  • Operating Temperature: -40°C to 105°C
  • ECCN: EAR99
  • REACH: Unaffected
  • Counterfeit Threat: 50% in Open Market
