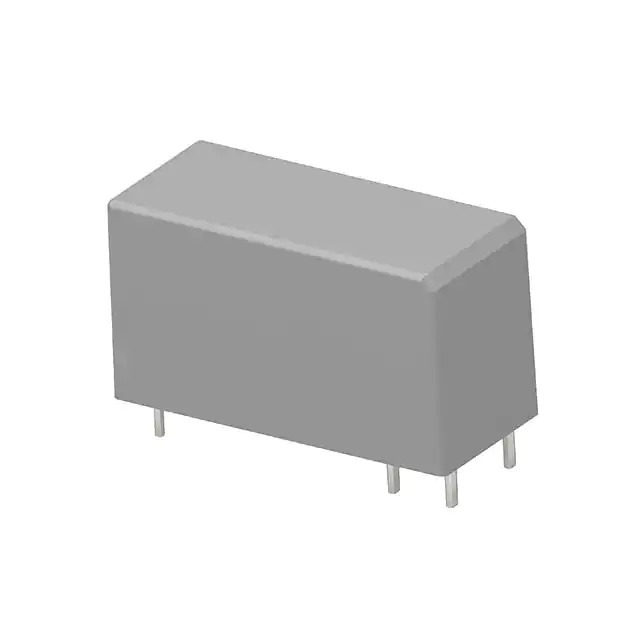

Same model may have multiple batches, images only for reference.

1-1415898-9

Name: 1-1415898-9
Brand: TE Connectivity
SKU: 1373451
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	1-1415898-9
Manufacturer	TE Connectivity
Catalog	Power Relays, Over 2 Amps
Description	RELAY GEN PURPOSE SPST 16A 12V / General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Relays - Power Relays, Over 2 Amps
Mfr	TE Connectivity Potter & Brumfield Relays
Series	RT1, Inrush, SCHRACK
Package	Tube
Product Status	Active
Mounting Type	Through Hole
Coil Voltage	12VDC
Contact Form	SPST-NO (1 Form A)
Contact Rating (Current)	16 A
Switching Voltage	400VAC - Max
Coil Current	33.3 mA
Coil Type	Non Latching
Features	-
Termination Style	PC Pin
Seal Rating	Sealed - Flux Protection
Coil Insulation	Class F
Must Operate Voltage	8.4 VDC
Must Release Voltage	1.2 VDC
Operate Time	10 ms
Release Time	5 ms
Temperature Range - Operating	-40°C ~ 85°C
Contact Material	Silver Tin Oxide (AgSnO)
Relay Type	General Purpose
Coil Resistance	360 Ohms
Base Product Number	1-1415898
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8536.41.0050
Win Source Part Number	1373451-1-1415898-9
Ultra Librarian 3D Model	Ultra Librarian 1-1415898-9 CAD Model

Description

The TE Connectivity Potter & Brumfield Relays RT1, Inrush, SCHRACK power relay is a single-pole, single-throw normally open (SPST-NO) relay.

Contact Rating: 16A
Switching Voltage: 400VAC maximum
Coil Voltage: 12VDC
Coil Current: 33.3mA
Coil Type: Non-Latching
Protection Rating: IP67
Contact Material: Silver Tin Oxide (AgSnO)
Coil Insulation: Class F
Must Operate Voltage: 8.4VDC
Must Release Voltage: 1.2VDC
Operate Time: 10ms
Release Time: 5ms
Application: General Purpose
Product Status: Active
Packaging: Tube
Temperature Range: -40°C to 85°C
HTSUS Code: 8536.41.0050
ECCN: EAR99
