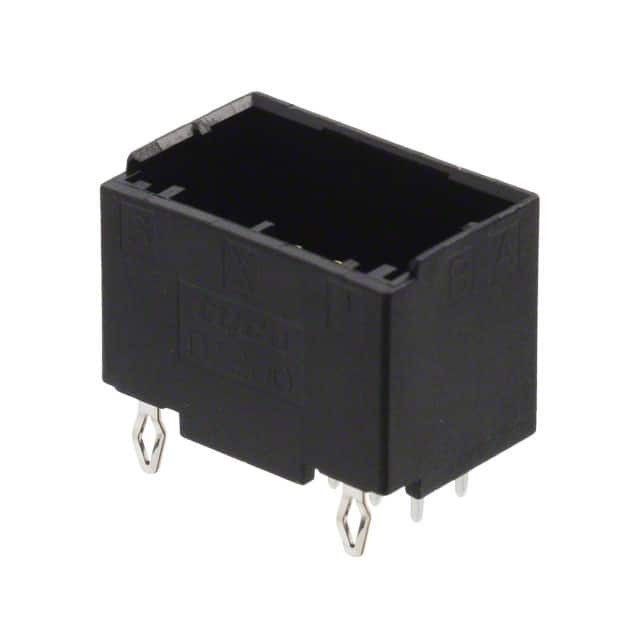

Same model may have multiple batches, images only for reference.
1-1827875-6
Same model may have multiple batches, images only for reference.

1-1827875-6

Part No 1-1827875-6
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER VERT 12POS 2.5MM / Connector Header Through Hole 12 position 0.098" (2.50mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity
Series Dynamic D-1200
Package Tube
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.098" (2.50mm)
Number of Positions 12
Number of Rows 2
Row Spacing - Mating 0.130" (3.30mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Detent Lock
Contact Length - Post 0.120" (3.05mm)
Insulation Height 0.490" (12.44mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 15.0µin (0.38µm)
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Thermoplastic, Polyester, Glass Filled
Features Board Lock
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 5A
Voltage Rating 250V
Contact Finish Thickness - Post 78.7µin (2.00µm)
Applications General Purpose, Industrial
Base Product Number 1827875
Standard Package 26 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 853774-1-1827875-6
Ultra Librarian 3D Model Ultra Librarian 1-1827875-6 CAD Model

Description

The TE Connectivity 853774-1-1827875-6 is a header type male pin connector. TE Connectivity is the manufacturer.

  • Series: Dynamic D-1200
  • Positions: 12
  • Features: Board Lock
  • Connector Type: Header, Male Pins
  • Loaded: All Positions
  • Rows: 2
  • Termination: Solder
  • Fastening: Detent Lock
  • Package: Tube
  • Contact Material: Copper Alloy
  • Voltage Rating: 250V
  • Material Flammability: UL94 V-0
  • Standard Package: 26 pieces
  • Insulation Material: Thermoplastic, Polyester, Glass Filled
  • Pitch: 0.098" (2.50mm)
  • Contact Finish: Gold
  • Contact Finish Thickness: 15.0μin (0.38μm)
  • Contact Finish Post: Tin
  • Contact Finish Thickness Post: 78.7μin (2.00μm)
  • Insulation Color: Black
  • Mounting Type: Through Hole
  • Shrouded: 4 Walls
  • Row Spacing: 0.130" (3.30mm)
  • Contact Length Post: 0.120" (3.05mm)
  • Insulation Height: 0.490" (12.44mm)
  • Contact Shape: Square
  • Operating Temperature: -55°C to 105°C
