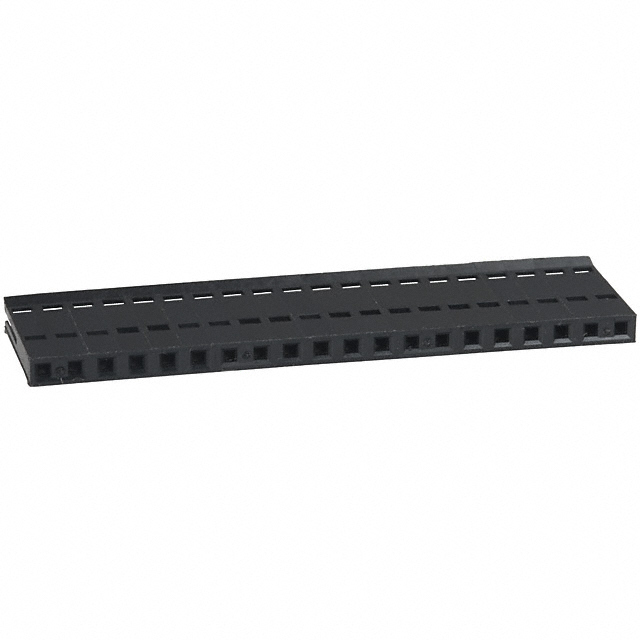

Same model may have multiple batches, images only for reference.

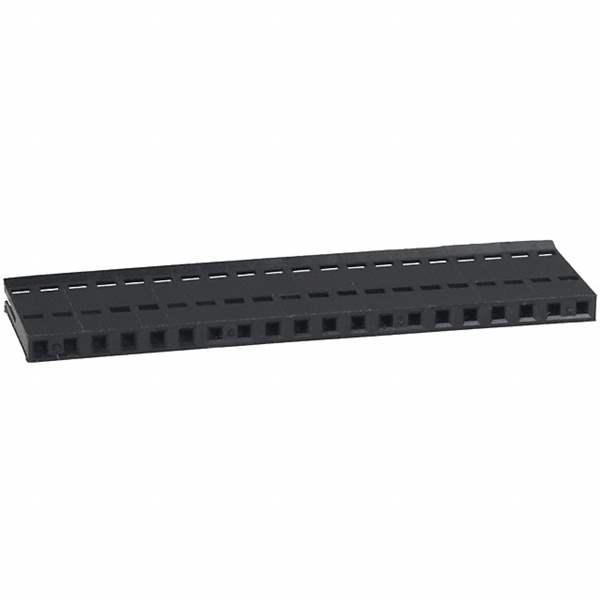

1-487378-7 TE Connectivity – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

1-487378-7

Part No 1-487378-7
Manufacturer TE Connectivity
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC RCPT HSG 18POS 2.54MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Flat Flex Type FFC
Connector Type Housing for Female Contacts
Number of Positions 18
Number of Rows 1
Pitch 0.100" (2.54mm)
FFC, FCB Thickness 0.05-0.13mm
Voltage Rating 300 V
Housing Material Thermoplastic
Temperature Range - Operating -65°C ~ 105°C
Material Flammability Rating UL94 V-0
Package Bulk
Supply and Demand Status Normal
Win Source Part Number 1625310-1-487378-7
Ultra Librarian 3D Model Ultra Librarian 1-487378-7 CAD Model

Description
