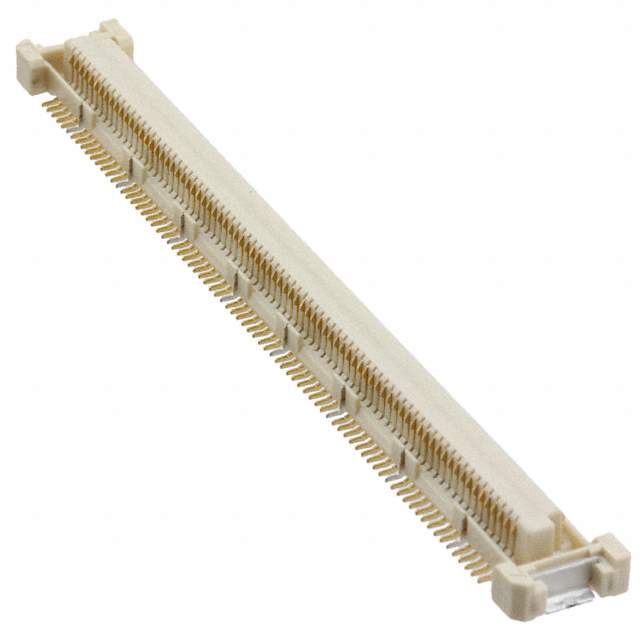

1-5316560-1 Real Image
Same model may have multiple batches, images only for reference.

1-5316560-1

Part No 1-5316560-1
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN RCPT 160POS SMD GOLD / 160 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Arrays, Edge Type, Mezzanine (Board to Board)
Manufacturer TE Connectivity AMP Connectors
Packaging Tray
Connector Type Receptacle, Center Strip Contacts
Number of Positions 160
Pitch 0.024" (0.60mm)
Number of Rows 2
Mounting Surface Mount
Features Board Guide, Solder Retention
Contact Finish Gold
Contact Finish Thickness 8.00µin (0.203µm)
Mated Stacking Heights 4mm
Height Above Board 0.128" (3.25mm)
Base Product Number 5316560
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 1-5316560-1-ND,-1-5316560-1-SI,2266-1-5316560-1,A114864
Standard Package 30
Win Source Part Number 1332085-1-5316560-1
Ultra Librarian 3D Model Ultra Librarian 1-5316560-1 CAD Model

Description

The TE Connectivity AMP Connectors 1332085-1-5316560-1 is a rectangular connector array that is designed for use in mezzanine (board to board) applications.

  • Application: Mezzanine (Board to Board)
  • Packaging: Tray
  • Positions: 160
  • Contact Finish: Gold
  • Contact Finish Thickness: 8.00μin (0.203μm)
  • Height Above Board: 0.128" (3.25mm)
  • RoHS3 Compliant: Yes
