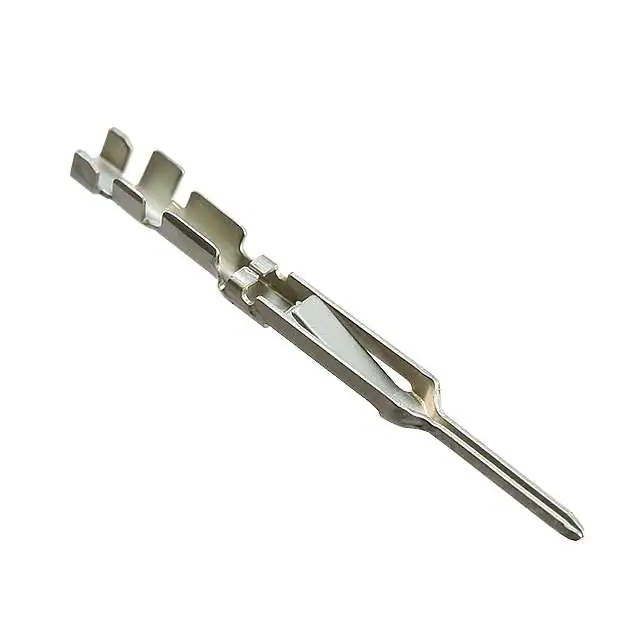

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - FFC, FPC (Flat Flexible) Connectors - FFC, FPC (Flat Flexible) Connector Contacts
Mfr TE Connectivity AMP Connectors
Series -
Package Tape & Reel (TR)
Product Status Active
Type -
Pin or Socket Pin
Contact Termination Crimp
Wire Gauge 22-26 AWG
Contact Finish Tin
Contact Finish Thickness 100.0µin (2.54µm)
Base Product Number 86557
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1362856-1-86557-9
Ultra Librarian 3D Model Ultra Librarian 1-86557-9 CAD Model

Description

The 1362856-1-86557-9 is a FFC/FPC connector contact from TE Connectivity AMP Connectors.

  • Termination Type: Crimp
  • Wire Gauge: 22 to 26 AWG
  • Contact Finish: Tin
  • Product Status: Active
