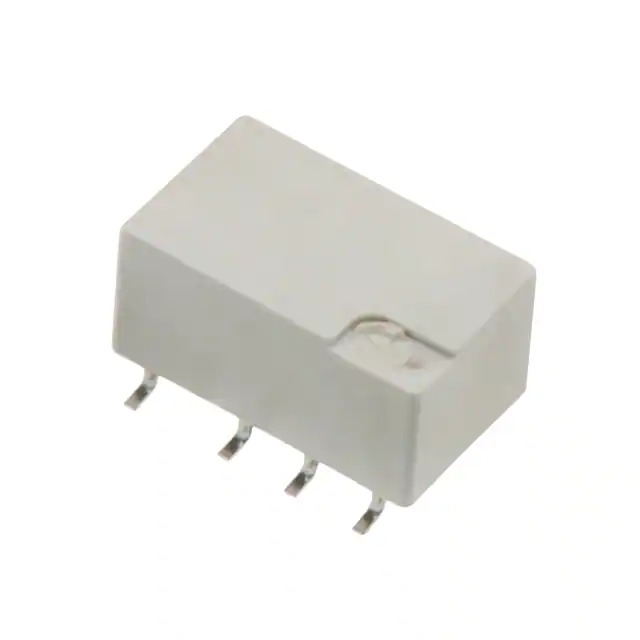

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Relays - Signal Relays, Up to 2 Amps
Mfr TE Connectivity Potter & Brumfield Relays
Series IM, AXICOM
Package Tape & Reel
Product Status Active
Mounting Type Surface Mount
Coil Voltage 24VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 2 A
Switching Voltage 250VAC, 220VDC - Max
Coil Current 8.3 mA
Coil Type Non Latching
Features -
Termination Style Gull Wing
Seal Rating Sealed - Hermetically
Coil Insulation -
Must Operate Voltage 18 VDC
Must Release Voltage 2.4 VDC
Operate Time 3 ms
Release Time 3 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Palladium (Pd), Ruthenium (Ru), Gold (Au)
Relay Type Telecom
Coil Resistance 2.88 kOhms
Base Product Number 1462039
MSL Level 3 (168 Hours)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 1373467-1462039-2
Ultra Librarian 3D Model Ultra Librarian 1462039-2 CAD Model

Description

The TE Connectivity Potter & Brumfield Relays IM, AXICOM series is a signal relay that is designed for reliable and efficient switching.

  • Contact Form: DPDT (2 Form C)
  • Coil Voltage: 24VDC
  • Coil Current: 8.3 mA
  • Switching Voltage: 250VAC and 220VDC
  • Rating: Sealed and hermetically rated
  • Design: Compact and surface mount design
  • Product Status: Active
