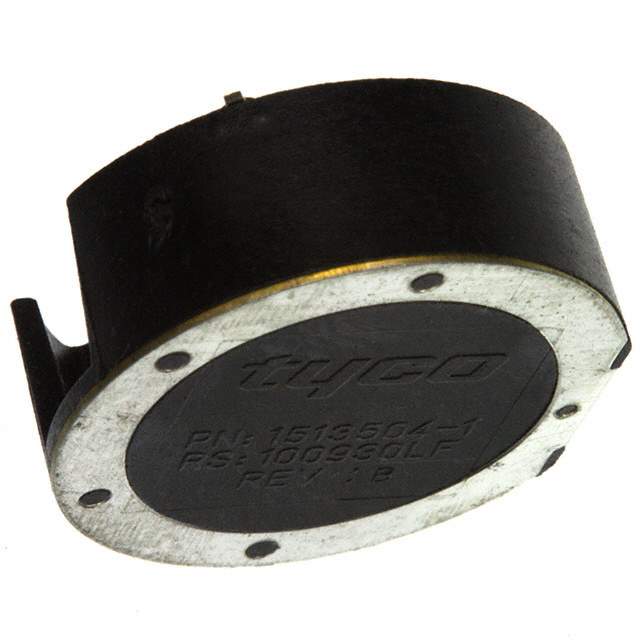

1513504-1 Real Image
Same model may have multiple batches, images only for reference.

1513504-1

Part No 1513504-1
Manufacturer TE Connectivity
Catalog RF Antennas
Description ANTENNA BLUETOOTH 802.11B/G SMD
Datasheet
1513504-1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer TE Connectivity AMP Connectors
Packaging Reel - TR
Status Active
Frequency Group UHF (2 GHz to 3 GHz)
Frequency (Center/Band) 2.4GHz
Frequency Range 2.4GHz to 2.483.5GHz
Antenna Type Puck
Number of Bands 1
VSWR 2.5
Gain 2dBi
Maximum Power Dissipation 10W
Termination Solder
Mounting SMD (SMT)
Height (Max) 0.238" (6.05mm)
Applications Bluetooth, WLAN, Zigbee
Win Source Part Number 056927-1513504-1
Popularity Medium
Supply and Demand Status Limited
