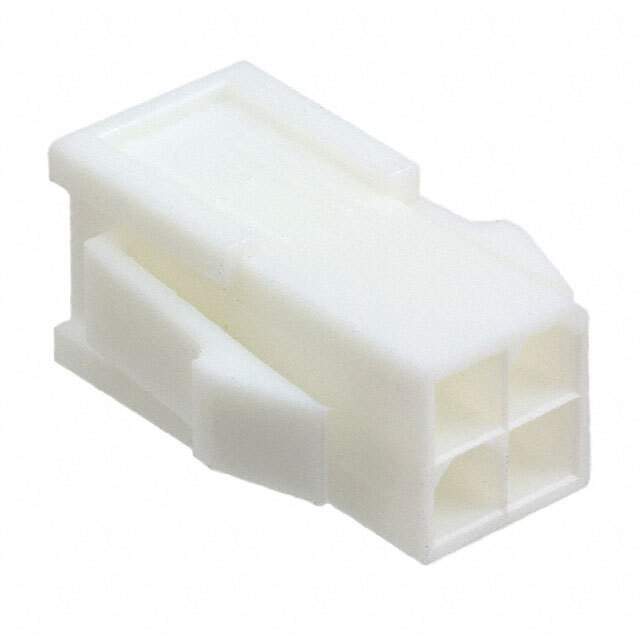

1586018-4 Real Image
Same model may have multiple batches, images only for reference.

1586018-4

Part No 1586018-4
Manufacturer TE Connectivity
Catalog Barrel - Power Connectors
Description CONN PLUG HOUSING 4POS PANEL MT  /  4 Rectangular Connectors - Housings Plug Natural 0.165" (4.20mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Housings
Mfr TE Connectivity AMP Connectors
Series VAL-U-LOK
Package Bulk
Connector Type Plug
Contact Type Male Pin
Number of Positions 4
Pitch 0.165" (4.20mm)
Number of Rows 2
Row Spacing 0.165" (4.20mm)
Mounting Type Panel Mount, Snap-In
Contact Termination Crimp
Fastening Type Locking Ramp
Color Natural
Note Contacts Not Included
Base Product Number 1586018
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8538.90.6000
Other Names -1586018-4-LSI,1586018-4-ND,2266-1586018-4,-1586018-4-SI,A112420
Standard Package 500
Win Source Part Number 1002497-1586018-4
Ultra Librarian 3D Model Ultra Librarian 1586018-4 CAD Model

Description

The TE Connectivity AMP Connectors 1586018 is a VAL-U-LOK rectangular connector housing with 4 positions and a pitch of 0.165" (4.20mm). TE Connectivity AMP Connectors 1586018 is a VAL-U-LOK rectangular connector housing with 4 positions and a pitch of 0.165" (4.20mm).

  • Positions: 4
  • Pitch: 0.165" (4.20mm)
  • Color: natural
  • Fastening Type: locking ramp
  • Contact Type: male pin
  • Contact Termination: crimp
