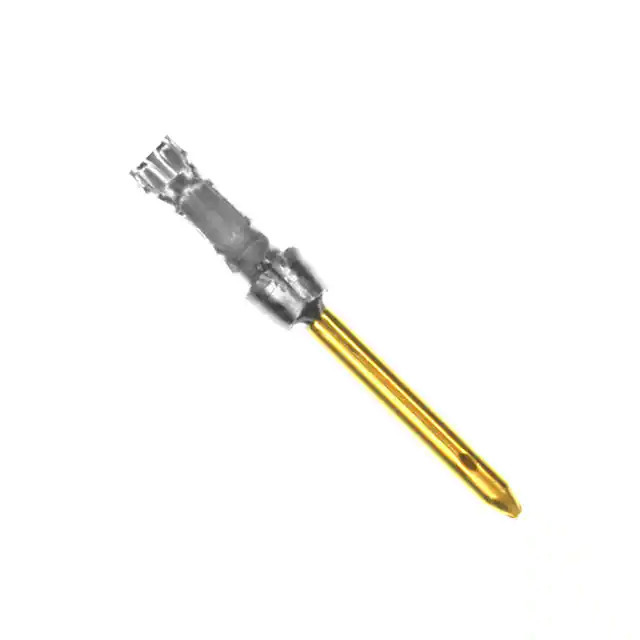

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub, D-Shaped Connector Contacts
Mfr TE Connectivity AMP Connectors
Series AMPLIMITE HDP-20
Package Bulk
Product Status Last Time Buy
Type Signal
Contact Type Male Pin
Contact Form Stamped
Wire Gauge 24-28 AWG
Contact Termination Crimp
Contact Material Brass
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Termination Finish -
Termination Finish Thickness -
Contact Size 20
Features Insulation Support
Base Product Number 166294
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1363172-166294-1
Ultra Librarian 3D Model Ultra Librarian 166294-1 CAD Model

Description

The TE Connectivity AMP Connectors AMPLIMITE HDP-20 series offers high-quality D-Sub, D-Shaped connector contacts.

  • Base Product Number: 166294
  • Termination Type: Crimp
  • Wire Gauge: 24-28 AWG
  • Contact Finish: Gold
  • Contact Type: Male Pin
  • Insulation Support: Yes
