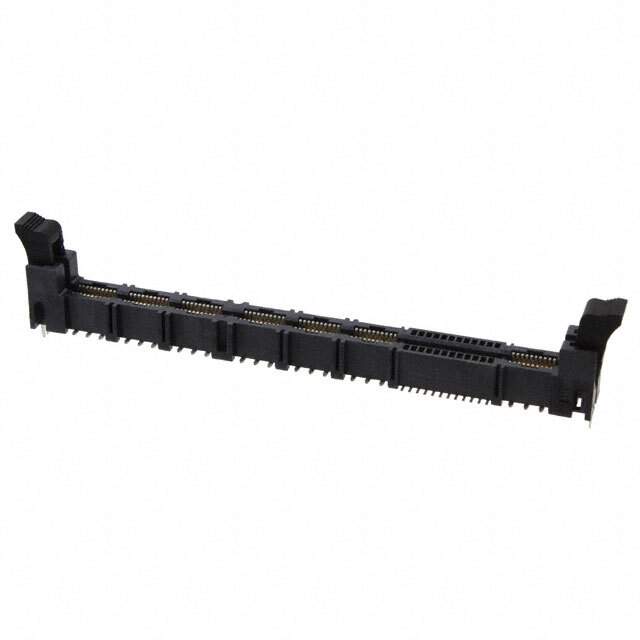

1766735-2 Real Image
Same model may have multiple batches, images only for reference.

1766735-2

Part No 1766735-2
Manufacturer TE Connectivity
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN EDGE DUAL FMALE 38POS GOLD / 38 (24 + 14 Power) Position Female Connector Non Specified - Dual Edge Gold Black
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Card Edge Connectors>Edgeboard Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Tray
Card Type Non Specified - Dual Edge
Gender Female
Number of Positions 38 (24 + 14 Power)
Card Thickness 0.062" (1.57mm)
Number of Rows 2
Read Out Dual
Features Board Lock, Latches
Mounting Surface Mount
Termination Solder
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Color Black
Temperature Range - Operating -55°C ~ 105°C
Material - Insulation Thermoplastic
Base Product Number 1766735
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number -1766735-2-SI,A107794,2266-1766735-2
Standard Package 26
Win Source Part Number 1334041-1766735-2
Ultra Librarian 3D Model Ultra Librarian 1766735-2 CAD Model

Description

The TE Connectivity AMP Connectors edgeboard connector with Win Source Part Number 1334041-1766735-2 is a female connector designed for surface mounting.

  • Win Source Part Number: 1334041-1766735-2
  • Gender: Female
  • Mounting: Surface Mounting
  • Positions: 38 (24 + 14 Power)
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0μin (0.76μm)
  • Operating Temperature Range: -55°C to 105°C
  • Card Thickness: 0.062" (1.57mm)
  • Features: Board Lock and Latches
