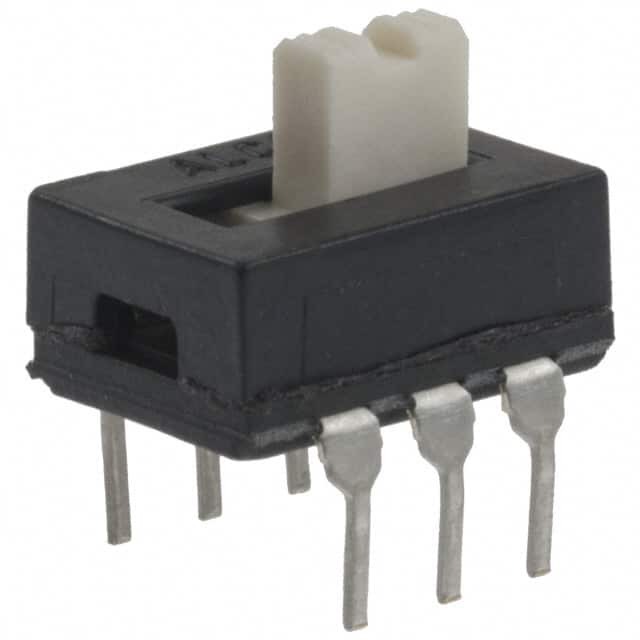

1825010-1 TE Connectivity
Same model may have multiple batches, images only for reference.

1825010-1

Part No 1825010-1
Manufacturer TE Connectivity
Catalog Slide Switches
Description SWITCH SLIDE DPDT 300MA 115V  /  Slide Switch DPDT Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Slide Switches
Mfr TE Connectivity ALCOSWITCH Switches
Series ASE
Package Bulk
Circuit DPDT
Contact Timing Shorting (MBB)
Switch Function On-On
Current Rating (Amps) 300mA (AC)
Voltage Rating - AC 115 V
Actuator Type Standard
Actuator Length 2.79mm
Contact Material Copper Alloy
Contact Finish Silver
Mounting Type Through Hole
Termination Style PC Pin
Temperature Range - Operating -40°C ~ 80°C
Actuator Material Polyamide (PA46), Nylon 4/6
Switch Travel 2.79mm
Mechanical Life 15,000 Cycles
Electrical Life 15,000 Cycles
Operating Force 950gf
Base Product Number 1825010
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9050
Other Names ASE2204-ND,-1825010-1-SI,450-1557,-ASE2204-LSI,-ASE2204-SI-ND,-ASE2204-SI,ASE2204
Standard Package 51
Win Source Part Number 1031956-1825010-1
Ultra Librarian 3D Model Ultra Librarian 1825010-1 CAD Model

Description

The TE Connectivity ASE switch is a DPDT on-on switch with a shorting contact timing.

  • Actuator Type: Standard
  • Actuator Length: 2.79mm
  • Switch Travel: 2.79mm
  • Voltage Rating: 115V AC
  • Current Rating: 300mA (AC)
  • Contact Material: Copper alloy
  • Contact Finish: Silver
  • Actuator Material: Polyamide (PA46), nylon 4/6
  • Packaging: Bulk
  • Temperature Range: -40°C to 80°C
  • Alternative Parts: 1825011-1, JS202011AQN, JS202011CQN, L202011MS02Q, SS22SDP2, CS22BNW03, V80212MA08Q, V80212SS05Q, V80213MS02Q, MS22ANW03, MS23BNW03ASE2204, and ASE2204
