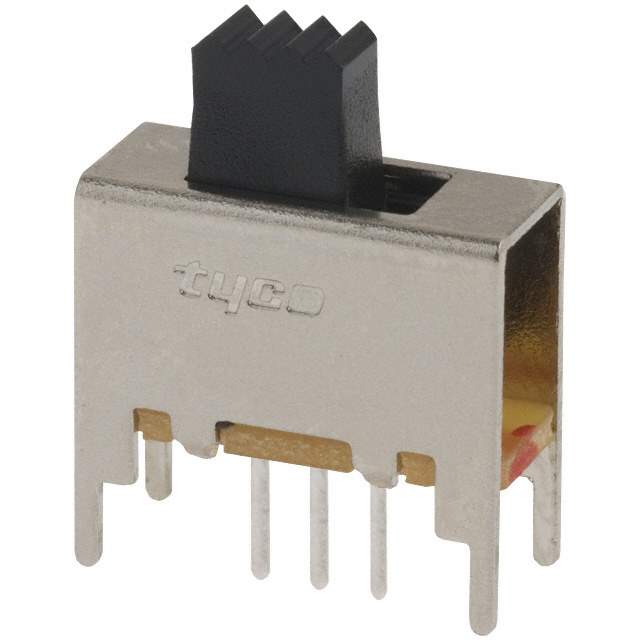

1825257-1 Real Image
Same model may have multiple batches, images only for reference.

1825257-1

Part No 1825257-1
Manufacturer TE Connectivity
Catalog Slide Switches
Description SWITCH SLIDE SPDT 300MA 125V  /  Slide Switch SPDT Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Slide Switches
Mfr TE Connectivity ALCOSWITCH Switches
Series MSS
Package Bulk
Circuit SPDT
Contact Timing Shorting (MBB)
Switch Function On-On
Current Rating (Amps) 300mA (AC)
Voltage Rating - AC 125 V
Actuator Type Standard
Actuator Length 5.00mm
Contact Material Copper Alloy
Contact Finish Silver
Mounting Type Through Hole
Termination Style PC Pin
Features Epoxy Sealed Terminals
Temperature Range - Operating -20°C ~ 85°C
Actuator Material Polyoxymethylene (Acetal) (POM)
Switch Travel 2.00mm
Mechanical Life 15,000 Cycles
Electrical Life 15,000 Cycles
Operating Force 600gf
Base Product Number 1825257
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9050
Other Names MSS120004,MSS120004-ND,450-1582
Standard Package 600
Win Source Part Number 987162-1825257-1
Ultra Librarian 3D Model Ultra Librarian 1825257-1 CAD Model

Description

The TE Connectivity MSS120004 is a slide switch with SPDT circuit and on-on switch function.

  • Voltage Rating: 125 V
  • Current Rating: 300mA (AC)
  • Actuator Length: 5.00mm
  • Switch Travel: 2.00mm
  • Mechanical Life: 15,000 cycles
  • Electrical Life: 15,000 cycles
  • Operating Force: 600gf
  • Operating Temperature: -20°C ~ 85°C
