1825910-7 TE Connectivity

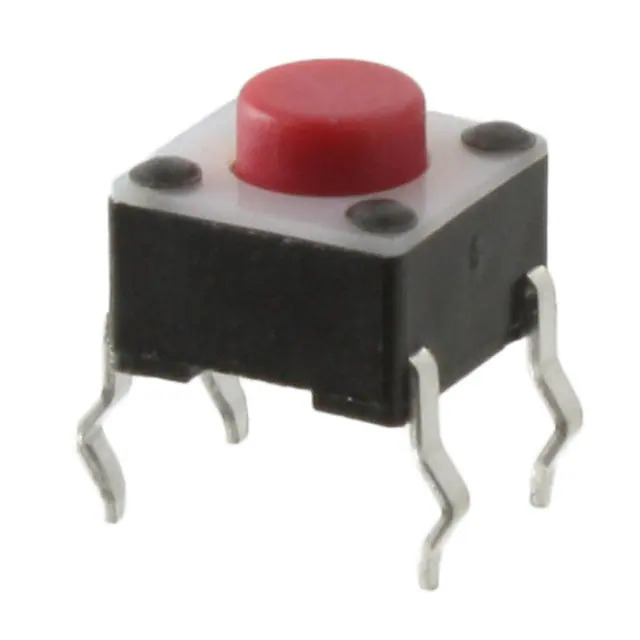

Same model may have multiple batches, images only for reference.

1825910-7

Part No 1825910-7
Manufacturer TE Connectivity
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.05A 24V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Tactile Switches
Mfr TE Connectivity ALCOSWITCH Switches
Series FSMJ
Package Bulk
Product Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 24VDC
Actuator Type Standard
Mounting Type Through Hole
Actuator Height off PCB, Vertical 5.00mm
Actuator Length, Right Angle -
Actuator Orientation Top Actuated
Termination Style PC Pin
Outline 6.00mm x 6.00mm
Illumination Non-Illuminated
Illumination Type, Color -
Illumination Voltage (Nominal) -
Operating Force 260gf
Ingress Protection -
Features -
Temperature Range - Operating -35°C ~ 85°C
Actuator Material Polybutylene Terephthalate (PBT)
Switch Travel 0.25mm
Mechanical Life 100,000 Cycles
Base Product Number 1825910
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 1376443-1825910-7
Ultra Librarian 3D Model Ultra Librarian 1825910-7 CAD Model

Description

The FSMJ series tactile switch from TE Connectivity ALCOSWITCH Switches is a reliable and durable component for various electronic applications.

  • Temperature Range: -35°C to 85°C
  • Circuit Configuration: SPST-NO
  • Switch Function: Off-Mom
  • Actuator Type: Standard
  • Actuator Height off PCB: 5.00mm
  • Mechanical Life: 100,000 cycles
  • Contact Rating: 0.05A @ 24VDC
  • Mounting Type: Through-Hole
  • Outline: 6.00mm x 6.00mm
  • Actuator Material: Polybutylene Terephthalate (PBT)
