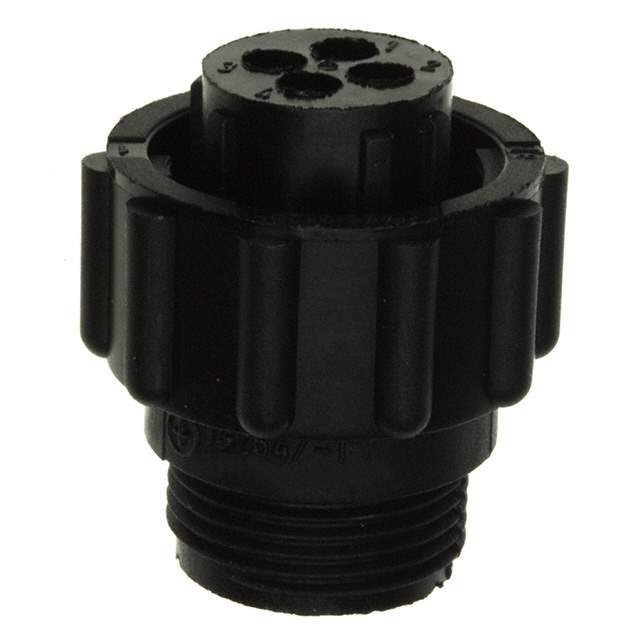

182647-1 Real Image
Same model may have multiple batches, images only for reference.

182647-1

Part No 182647-1
Manufacturer TE Connectivity
Catalog Circular Connectors
Description CONN PLUG HSG FMALE 4POS INLINE / 4 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors - Housings
Mfr TE Connectivity AMP Connectors
Series CPC Series 1
Package Bulk
Connector Type Plug Housing
Type For Female Sockets
Number of Positions 4
Shell Size - Insert 11-4
Contact Type Crimp
Contact Size 16
Mounting Type Free Hanging (In-Line)
Fastening Type Threaded
Orientation Keyed
Shell Material Thermoplastic
Housing Color Black
Material Flammability Rating UL94 V-0
Features Coupling Nut
Shielding Unshielded
Note Contacts Not Included
Insert Material Thermoplastic
Contact Shape Circular
Temperature Range - Operating -55°C ~ 105°C
Base Product Number 182647
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8538.90.6000
Other Names A99537,182647-1-ND,1826471
Standard Package 100
Win Source Part Number 1035089-182647-1
Ultra Librarian 3D Model Ultra Librarian 182647-1 CAD Model

Description

The CPC Series 1 plug housing from TE Connectivity AMP Connectors is a high-quality circular connector housing designed for use with female sockets.

  • Series: CPC Series 1
  • Connector Type: Plug Housing
  • Mating Gender: For Female Sockets
  • Features: Coupling Nut, Threaded
  • Material: Thermoplastic
  • Flammability Rating: UL94 V-0
  • Keying: Keyed
  • Housing Color: Black
  • Mounting Type: Free Hanging (In-Line)
  • Shell Size: 11-4
  • Contact Size: 16
  • Contacts Included: No
  • RoHS Compliant: Yes
