Same model may have multiple batches, images only for reference.

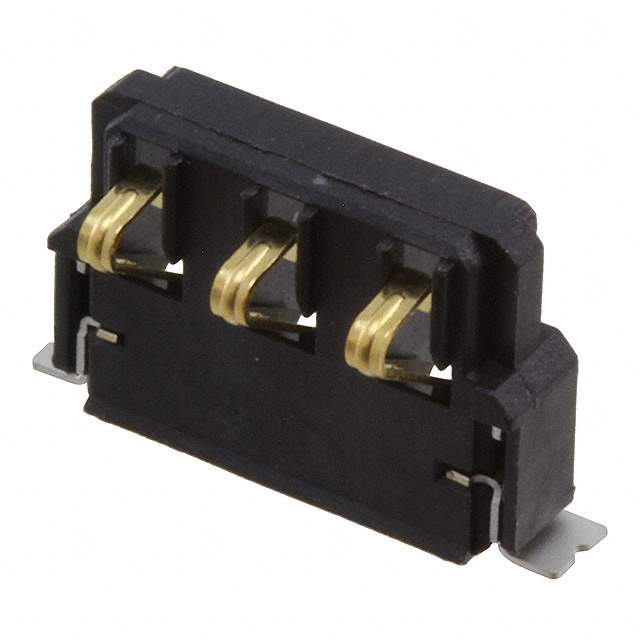

1827928-1 Real Image
Same model may have multiple batches, images only for reference.

1827928-1

Part No 1827928-1
Manufacturer TE Connectivity
Catalog Barrel - Power Connectors
Description CONN SPRING BATTERY 3POS R/A SMD  /  3 Position Spring Battery Contact Connector Surface Mount, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Spring Loaded
Mfr TE Connectivity AMP Connectors
Package Tape & Reel
Connector Type Battery Contact
Number of Contacts 3
Pitch 0.126" (3.20mm)
Number of Rows 1
Mounting Type Surface Mount, Right Angle
Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness 39.4µin (1.00µm)
Base Product Number 1827928
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Other Names 18279281,A107941TR,2266-1827928-1,A107941DKR,A107941CT,-1827928-1-SI
Standard Package 400
Win Source Part Number 983649-1827928-1
Ultra Librarian 3D Model Ultra Librarian 1827928-1 CAD Model

Description

The TE Connectivity AMP Connectors 1827928-1 is a surface-mountable, right-angle battery contact connector with a pitch of 0.126 inches (3.20mm) and a gold contact finish.

  • Mounting Type: Surface Mountable
  • Orientation: Right Angle
  • Pitch: 0.126 inches (3.20mm)
  • Contact Finish: Gold
  • Number of Contacts: 3
  • Packaging: Tape and Reel
  • Standard Package: 400
