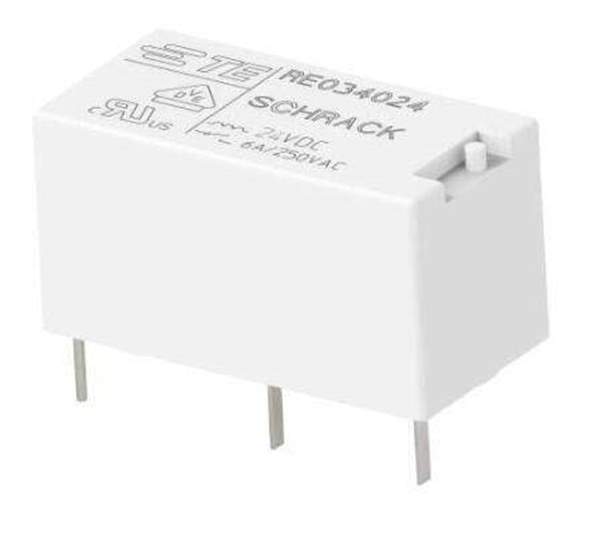

2-1416010-7 TE Connectivity
Same model may have multiple batches, images only for reference.

2-1416010-7

Part No 2-1416010-7
Manufacturer TE Connectivity
Catalog Signal Relays, Up to 2 Amps
Description General Purpose Relays RE034024
Datasheet
2-1416010-7 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TE Connectivity
Category Signal Relays, Up to 2 Amps
Product Power Relays
Type Miniature
Coil Voltage 24 VDC
Relay Contact Form 1 Form A (SPST-NO)
Contact Current Rating 6 A
Contact Termination Solder Pin
Mounting Style Through Hole
Switching Voltage 400 VAC
Coil Type Non-Latching
Coil Resistance 2.88 kOhms
Ultra Librarian 3D Model Ultra Librarian 2-1416010-7 CAD Model

Description

Features

•1 pole 6 A, 1 form A (NO) contact
• Sensitive coil 200 mW
• 4 kV coil-contact
• Optimized height 10.6mm
• PCB area 200mm²
• Wash tight
• Product in accordance to IEC 60335-1 (domestic appliances)
