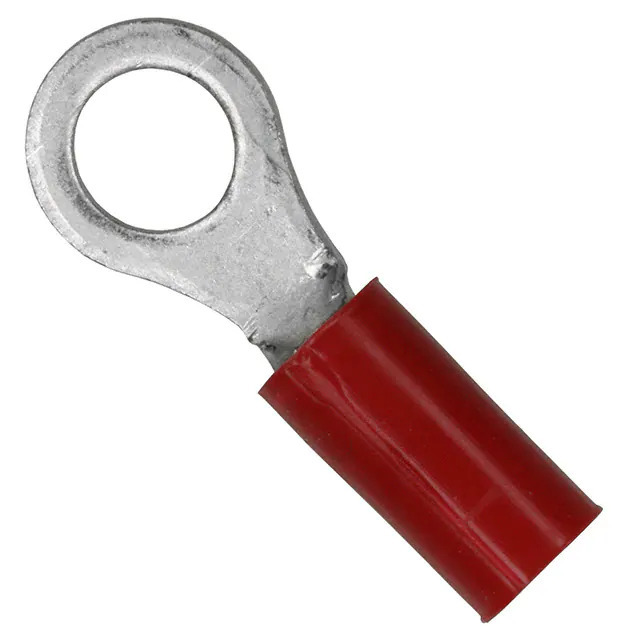

2-320552-1 TE Connectivity
Same model may have multiple batches, images only for reference.

2-320552-1

Part No 2-320552-1
Manufacturer TE Connectivity
Catalog Terminals
Description CONN RING CIRC 16-22AWG #10 / Ring Terminal Connector 10 Stud Circular 16-22 AWG Crimp
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Ring Connectors
Mfr TE Connectivity AMP Connectors
Series PIDG
Package Tape & Reel (TR)
Product Status Active
Terminal Type Circular
Stud/Tab Size 10 Stud
Thickness 0.031" (0.79mm)
Width - Outer Edges 0.281" (7.14mm)
Length - Overall 0.797" (20.24mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp
Wire Gauge 16-22 AWG
Insulation Insulated
Features Serrated Termination
Color Red
Contact Material Copper
Contact Finish Tin
Insulation Diameter 0.080" ~ 0.125" (2.03mm ~ 3.18mm)
Material - Insulation Polyamide (PA), Nylon
Base Product Number 320552
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1364823-2-320552-1
Ultra Librarian 3D Model Ultra Librarian 2-320552-1 CAD Model

Description

The PIDG Ring Connector from TE Connectivity AMP Connectors is a high-quality connector designed for secure and reliable wire connection.

  • Terminal Type: Circular
  • Stud/Tab Size: 10 stud
  • Overall Length: 0.797" (20.24mm)
  • Contact Material: Copper
  • Contact Finish: Tin
  • Insulation Color: Red
  • Mounting Type: Free-Hanging
  • Termination: Crimp
  • Series: PIDG
  • Packaging: Tape and Reel
  • Status: Active
  • Base Product Number: 320552
