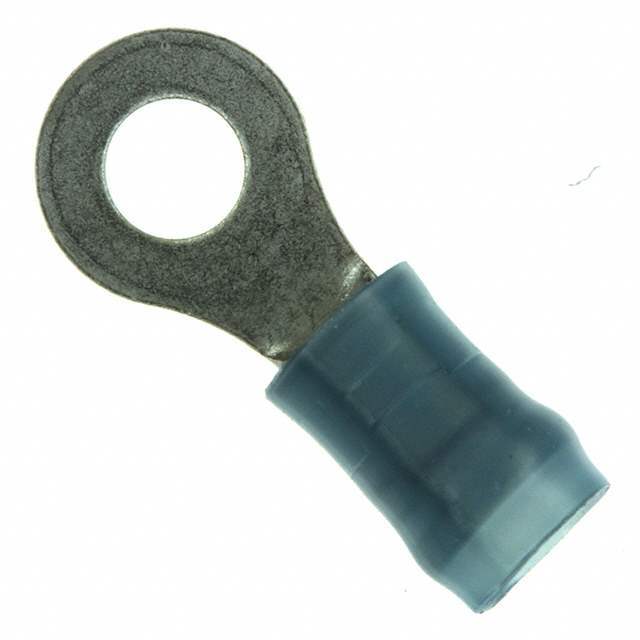

2-320565-1TE Connectivity AMP Connectors
Same model may have multiple batches, images only for reference.

2-320565-1

Part No 2-320565-1
Manufacturer TE Connectivity
Catalog Terminals
Description CONN RING CIRC 14-16AWG #8 CRIMP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1207655-2-320565-1
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects -Terminals- Ring Connectors
Series PIDG
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Active
Terminal Type Circular
Stud/Tab Size 8 Stud
Thickness 0.031" (0.79mm)
Width - Outer Edges 0.343" (8.71mm)
Length - Overall 0.859" (21.82mm)
Ultra Librarian 3D Model Ultra Librarian 2-320565-1 CAD Model

Description

Closed Ring Tongue Terminal, 16 – 14 AWG, #8 / M4 Stud Size, 4.34 mm [.171 in] Stud Diameter, Closed Barrel, Straight, Tin
