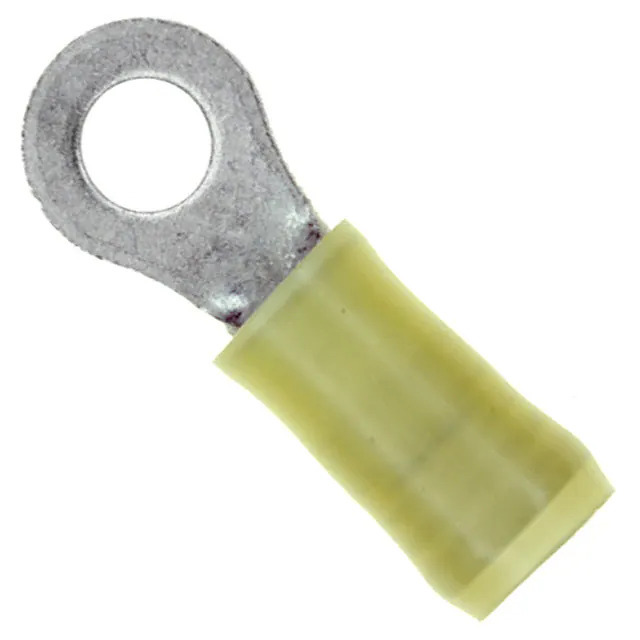

Same model may have multiple batches, images only for reference.

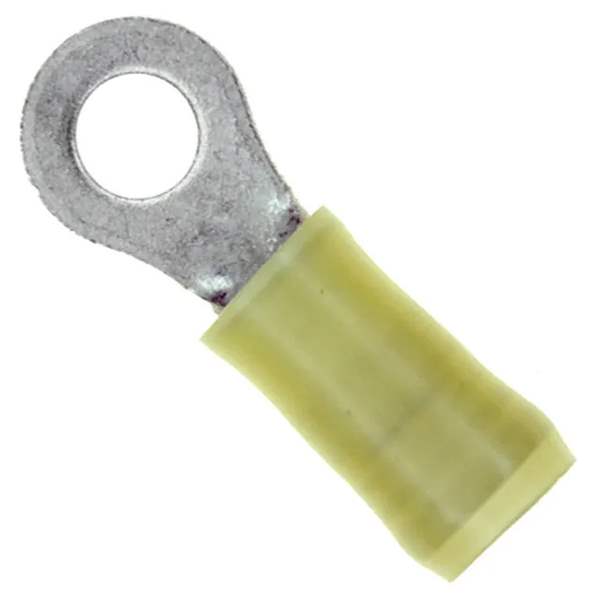

2-36161-2 TE Connectivity
Same model may have multiple batches, images only for reference.

2-36161-2

Part No 2-36161-2
Manufacturer TE Connectivity
Catalog Terminals
Description CONN RING CIRC 10-12AWG #10 / Ring Terminal Connector 10 Stud Circular 10-12 AWG Crimp
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Ring Connectors
Mfr TE Connectivity AMP Connectors
Series PIDG
Package Tape & Reel (TR)
Product Status Active
Terminal Type Circular
Stud/Tab Size 10 Stud
Thickness 0.039" (0.99mm)
Width - Outer Edges 0.375" (9.53mm)
Length - Overall 1.083" (27.51mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp
Wire Gauge 10-12 AWG
Insulation Insulated
Features Serrated Termination
Color Yellow
Contact Material Copper
Contact Finish Tin
Insulation Diameter 0.105" ~ 0.230" (2.67mm ~ 5.84mm)
Material - Insulation Polyamide (PA), Nylon
Base Product Number 36161
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1364748-2-36161-2
Ultra Librarian 3D Model Ultra Librarian 2-36161-2 CAD Model

Description

The TE Connectivity AMP Connectors PIDG Ring Connectors are designed for reliable and secure connections.

  • Manufacturer: TE Connectivity AMP Connectors
  • Series: PIDG
  • Wire Gauge: 10-12 AWG
  • Contact Finish: Tin
  • Insulation: Insulated
  • Color: Yellow
  • Overall Length: 1.083" (27.51mm)
  • Outer Edge Width: 0.375" (9.53mm)
  • Termination: Crimp
  • Contact Material: Copper
  • Insulation Material: Polyamide (PA), Nylon
