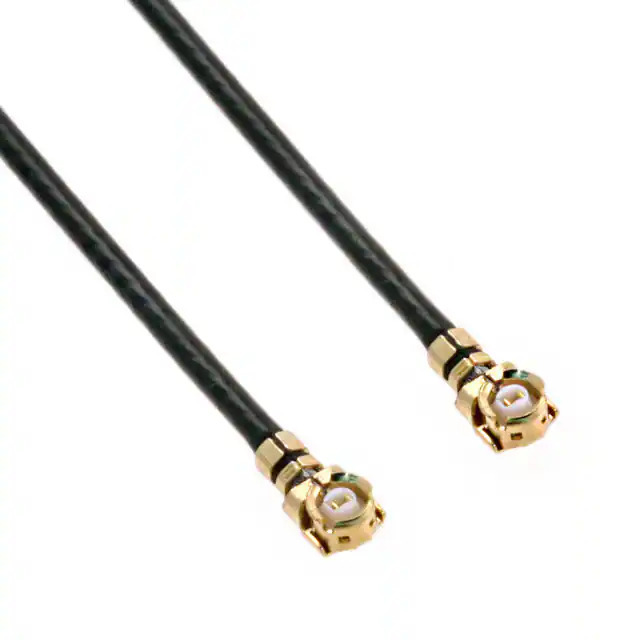

2015357-3 TE Connectivity
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Cable Assemblies - Coaxial Cables (RF)
Mfr TE Connectivity AMP Connectors
Series UMCC
Package Bag
Product Status Active
Style U.FL (UMCC) to U.FL (UMCC)
1st Connector U.FL (UMCC) Plug, Right Angle
1st Contact Gender Female
1st Connector Mounting Type Free Hanging (In-Line)
1st Connector Mounting Feature -
2nd Connector U.FL (UMCC) Plug, Right Angle
2nd Contact Gender Female
2nd Connector Mounting Type Free Hanging (In-Line)
2nd Connector Mounting Feature -
Length 3.937" (100.00mm)
Cable Type 1.37mm OD Coaxial Cable
Overall Impedance 50 Ohms
Frequency - Max 6 GHz
Color Black
Features Shielded
Temperature Range - Operating -40°C ~ 90°C
Ingress Protection -
Base Product Number 2015357
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8544.20.0000
Win Source Part Number 1365245-2015357-3
Ultra Librarian 3D Model Ultra Librarian 2015357-3 CAD Model

Description

The 1365245-2015357-3 is a coaxial cable assembly designed for RF applications from TE Connectivity AMP Connectors.

  • Temperature Range: -40°C to 90°C
  • Shielded: Yes
  • Cable Length: 3.937" (100.00mm)
  • Connector Type: U.FL (UMCC)
  • Connector Configuration: Right Angle Plug
  • Mounting Type: Free Hanging (In-Line)
  • Maximum Frequency: 6 GHz
  • Impedance: 50 Ohms
  • Product Status: Active
  • Series: UMCC
  • Package Type: Bag
