Same model may have multiple batches, images only for reference.

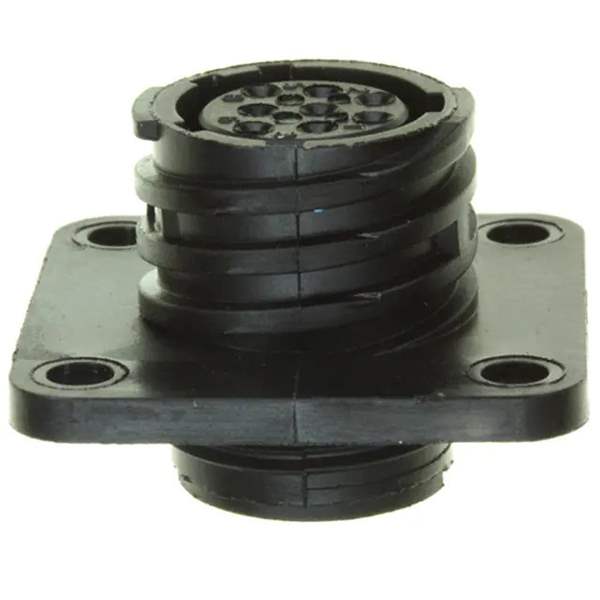

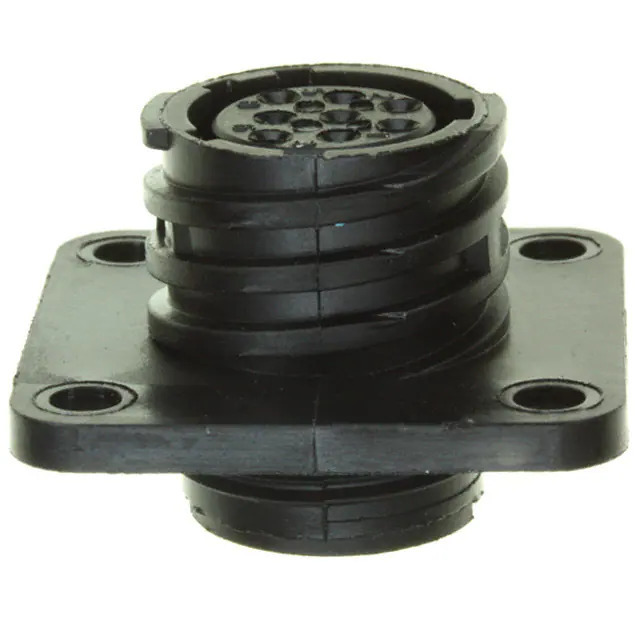

206433-1

Name: 206433-1
Brand: TE Connectivity
SKU: 1363713
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	206433-1
Manufacturer	TE Connectivity
Catalog	Circular Connectors - Housings
Description	CONN RCPT HSNG FMALE 8POS PNL MT / 8 Position Circular Connector Receptacle Housing Panel Mount
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Circular Connectors - Circular Connector Housings
Mfr	TE Connectivity AMP Connectors
Series	CPC Series 2
Package	Bulk
Product Status	Active
Connector Type	Receptacle Housing
Type	For Female Sockets
Number of Positions	8
Shell Size - Insert	11-8
Shell Size, MIL	-
Contact Type	Crimp
Contact Size	20
Mounting Type	Panel Mount
Mounting Feature	Flange
Fastening Type	Threaded
Orientation	Keyed
Shell Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Shell Finish	-
Housing Color	Black
Ingress Protection	-
Material Flammability Rating	UL94 V-0
Features	-
Shielding	Unshielded
Note	Contacts Not Included
Includes	-
Insert Material	Thermoplastic
Contact Shape	Circular
Temperature Range - Operating	-55°C ~ 105°C
Base Product Number	206433
MSL Level	1 (Unlimited)
REACH Status	Vendor Undefined
ECCN	EAR99
HTSUS	8538.90.6000
Win Source Part Number	1363713-206433-1
Ultra Librarian 3D Model	Ultra Librarian 206433-1 CAD Model

Alternative Products

Description

The 1363713-206433-1 is a circular connector housing from TE Connectivity AMP Connectors.

Series: CPC Series 2
Mounting: Panel Mount
Connector Type: Receptacle Housing
Contact Gender: Female Sockets
Number of Positions: 8
Fastening Type: Threaded
Ingress Protection: (rating)
Material Flammability Rating: UL94 V-0
Shell Size - Insert: 11-8
Contact Size: 20
Shell Material: Polyamide (PA66), Nylon 6/6, Glass Filled
Shell Color: Black
Note: Contacts not included
Operating Temperature Range: -55°C to 105°C
Category: Connectors, Interconnects - Circular Connectors - Circular Connector Housings
Product Status: Active
Packaging: Bulk
HTSUS Code: 8538.90.6000
ECCN: EAR99
REACH Status: Vendor Undefined
