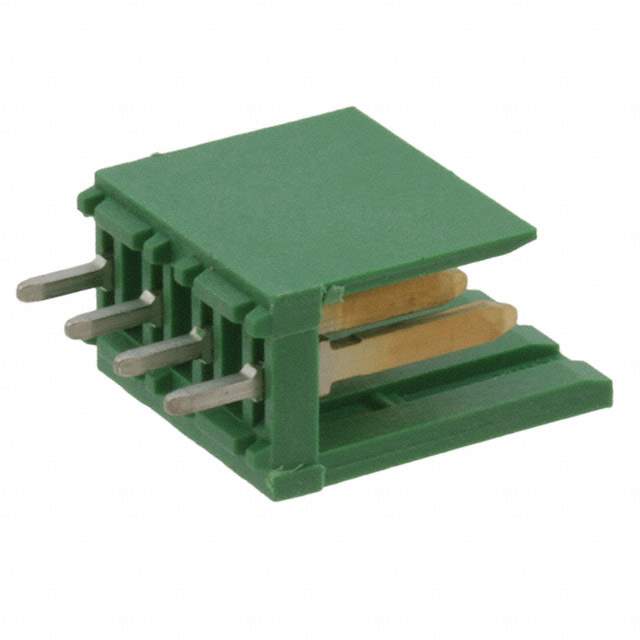

Same model may have multiple batches, images only for reference.

280610-2

Name: 280610-2
Brand: TE Connectivity
SKU: 540781
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	280610-2
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	AMP-MODU MODI STRAIGHT VERSION POST SUPPORT ASSY \| CONN HEADER VERT 4POS 3.96MM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	TE Connectivity AMP Connectors
Packaging	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.156" (3.96mm)
Number of Positions	4
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Shrouded - 2 Wall
Mounting Style	Through Hole
Termination	Solder
Fastening Type	Detent Lock
Contact Length - Mating	0.394" (10.00mm)
Contact Length - Post	0.130" (3.30mm)
Overall Contact Length	0.642" (16.30mm)
Insulation Height	0.913" (23.20mm)
Contact Shape	Rectangular
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	15.0μin (0.38μm)
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polycarbonate, Glass Filled
Material Flammability Rating	UL94 V-0
Insulation Color	Green
Manufacturer Pack Quantity	500
MSL Level	1 (Unlimited)
Win Source Part Number	1123469-280610-2
Manufacturer Homepage	www.macom.com
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian 280610-2 CAD Model

Description

The 280610-2 is a 4-position male pin header connector manufactured by TE Connectivity AMP Connectors. This connector is used in various applications, including board to board or cable connections. The connector is made of polycarbonate and glass-filled insulation material, and the contact finish is gold. The 280610-2 is a reliable and efficient choice for connector applications.
