Same model may have multiple batches, images only for reference.

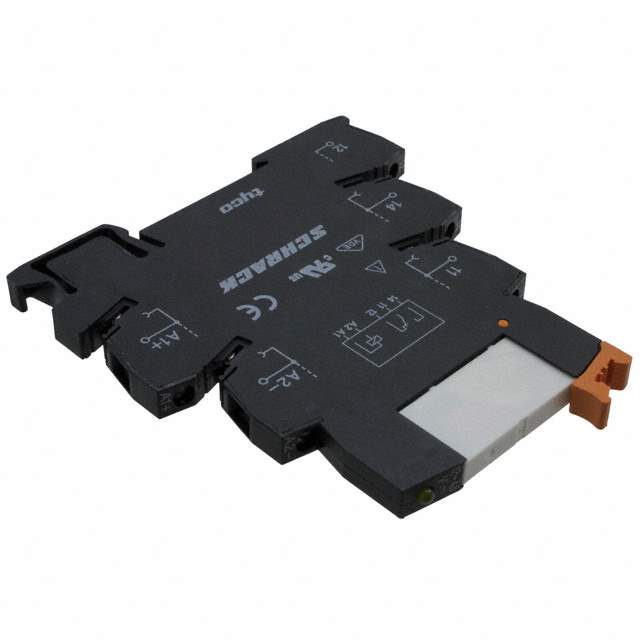

3-1416100-2 Real Image
Same model may have multiple batches, images only for reference.

3-1416100-2

Part No 3-1416100-2
Manufacturer TE Connectivity
Catalog Signal Relays, Up to 2 Amps
Description Electromechanical Relay 24VDC 3.39KOhm 10A SPDT(80x6.2x94)mm DIN Rail Relay Package
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Approvals VDE
Case / Package Module
Coil Current 7 mA
Coil Power 300 mW
Coil Resistance 3.39 kΩ
Coil Type Non-Latching
Coil Voltage (DC) 24 V
Contact Current Rating 6 A
Contact Material Silver, Tin
Contact Voltage Rating (AC) 240 V
Current Rating 6 A
Depth 6.2 mm
ELV Compliant
Height 94 mm
Length 80 mm
Max Current Rating 10 A
Max Operating Temperature 55 °C
Max Voltage Rating (AC) 400 V
Min Operating Temperature -40 °C
Mount DIN Rail
Number of Poles 1
Operate Time 12 ms
Packaging Bulk
Power Rating 220 mW
Radiation Hardening No
REACH SVHC Unknown
Relay Type General Purpose
Release Time 5 ms
RoHS Compliant
Switching Capacity 1.5 kW
Switching Current 6 A
Termination Screw
Throw Configuration SPDT
Voltage Rating (AC) 400 V
Weight 32.006612 g
Width 6.2 mm
Win Source Part Number 1229587-3-1416100-2
Categories Signal Relays,Up to 2 Amps
Manufacturer TE Connectivity
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 3-1416100-2 CAD Model

Description

The TE Connectivity 1229587-3-1416100-2 is a general purpose non-latching relay with a maximum current rating of 10A and a coil voltage of 24V DC.

  • Current Rating: 10A
  • Coil Voltage: 24V DC
  • Case/Package: Module
  • RoHS Compliant: Yes
  • Supply and Demand Status: Limited
