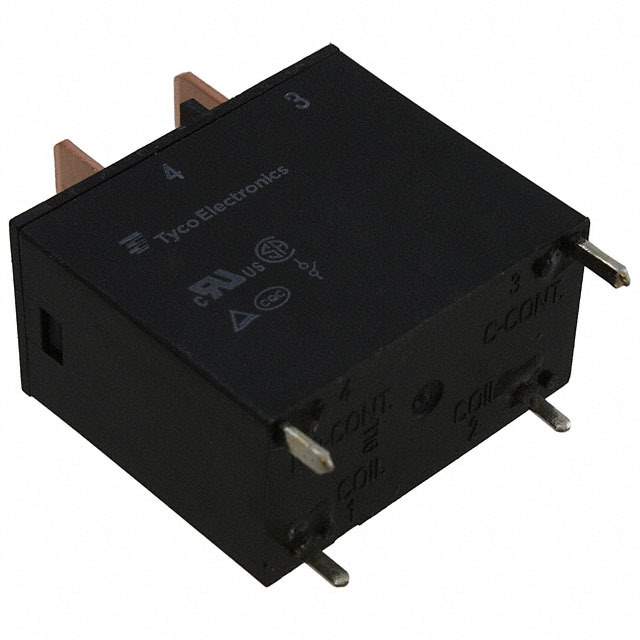

3-1419153-4 Real Image
Same model may have multiple batches, images only for reference.

3-1419153-4

Part No 3-1419153-4
Manufacturer TE Connectivity
Catalog Signal Relays, Up to 2 Amps
Description Electromechanical Relay 12VDC 160Ohm 25A SPST-NO (30.4x16x36.5)mm Power Relay
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Ambient Temperature Range High 55 °C
Coil Current 75 mA
Coil Power 900 mW
Coil Resistance 160 Ω
Coil Type Non-Latching
Coil Voltage (DC) 12 V
Contact Current Rating 25 A
Contact Material Silver, Tin
Current Rating 25 A
Depth 16 mm
Height 38.1 mm
Lead Free Yes
Length 30.4 mm
Max Current Rating 25 A
Maximum Operating Temperature 55 °C
Min Operating Temperature -30 °C
Mount Through Hole
Number of Contacts 1
Number of Pins 4
Operate Time 20 ms
Power Consumption 900 mW
RoHS Compliant
Termination PC Pin
Throw Configuration SPST
Voltage Rating (AC) 250 V
Win Source Part Number 1084301-3-1419153-4
Categories Signal Relays,Up to 2 Amps
Manufacturer TE Connectivity
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 3-1419153-4 CAD Model

Description

The TE Connectivity 1084301-3-1419153-4 is a signal relay with a non-latching coil type and a coil voltage (DC) of 12V.

  • Coil Type: Non-Latching
  • Coil Voltage (DC): 12V
  • Current Rating: 25A
  • Contact Material: silver, tin
  • Contact(s): 1
  • Pins: 4
  • Contact Current Rating: 25A
  • Coil Current: 75mA
  • Coil Power: 900mW
  • Termination: PC pin
  • Depth: 16mm
  • Mounting: Through Hole
  • Throw Configuration: SPST
  • Maximum Operating Temperature: 55 °C
  • Minimum Operating Temperature: -30 °C
  • Voltage Rating (AC): 250V
  • Contact Finish-Post: Gold
  • Supply and Demand: Shortage
