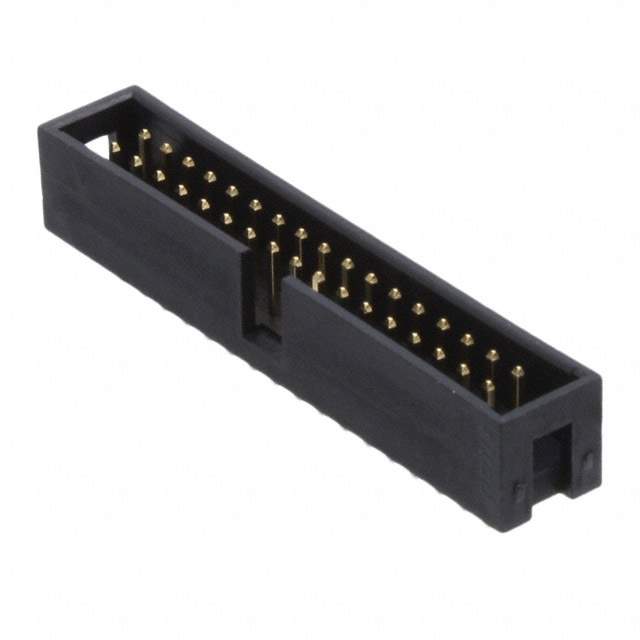

Part No 3-1634688-4
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description BOX HEADER STRAIGHT | CONN HEADER VERT 34POS 2.54MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Status Obsolete
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 34
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Style Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.228" (5.80mm)
Contact Length - Post 0.126" (3.20mm)
Insulation Height 0.343" (8.71mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0μin (0.25μm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA6T), Nylon 6T
Features Keying Slot
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A
Contact Finish Thickness - Post 80.0μin (2.03μm)
Manufacturer Pack Quantity 1,800
MSL Level 1 (Unlimited)
Win Source Part Number 1128094-3-1634688-4
Manufacturer Homepage www.macom.com
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Industrial
Ultra Librarian 3D Model Ultra Librarian 3-1634688-4 CAD Model

Description

1128094-3-1634688-4 from TE Connectivity is a through-hole header connector with 34 positions and a pitch of 0.100" (2.54mm).

  • Positions: 34
  • Pitch: 0.100" (2.54mm)
  • Design: Shrouded 4-wall
  • Keying Feature: Keying slot
  • Contact Gender: Male pins
  • Contact Plating: Gold plated
  • Insulation Material: Polyamide (PA6T), nylon 6T material
  • Operating Temperature: -40°C ~ 105°C
  • Current Rating: 3A
  • Category: Connectors, Interconnects
  • Product Status: Obsolete
  • Supply and Demand: Limited
