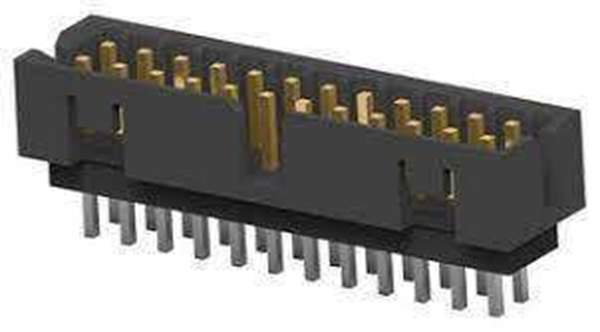

3-2842236-0TE Connectivity AMP Connectors
Same model may have multiple batches, images only for reference.

3-2842236-0

Part No 3-2842236-0
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description 30P,2MM,SHRD HDR,DRVT,0.1AU,TB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1208608-3-2842236-0
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects -Rectangular Connectors -Headers, Male Pins
Package Tube
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Row Spacing - Mating 0.079" (2.00mm)
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Ultra Librarian 3D Model Ultra Librarian 3-2842236-0 CAD Model

Description

Connector Header Through Hole 30 position 0.079" (2.00mm)
