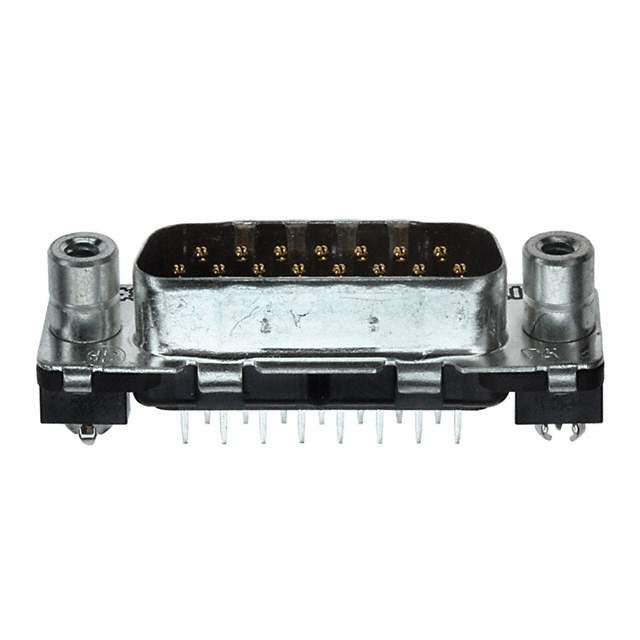

The TE Connectivity AMP Connectors 3-338310-2 is a D-sub connector assembly that contains 15 positions.

• Color: Black
• Features: Board lock and grounding indents
• Connector Type: Plug, male pins
• Contact Type: Signal
• Rows: 2
• Termination: Soldering
• Contact Finish: Gold
• Contact Material: Phosphor bronze
• Connector Style: D-sub
• Voltage Rating: Not specified
• Ingress Protection: Not specified
• Material Flammability Rating: UL94 V-0
• Standard Package: 45
• Mounting: Through the hole
• Flange Feature: Mating side, female screwlock (4-40)
• Shell Material: Steel, tin-plated
• Dielectric Material: Polyester, glass-filled
• Shell Size, Connector Layout: 2 (DA, A)
• Operating Temperature: -55°C to 105°C
• ECCN: EAR99
• REACH: Affected
• Current Rating (Amps): 6A
• HTSUS: 8536.69.4040
