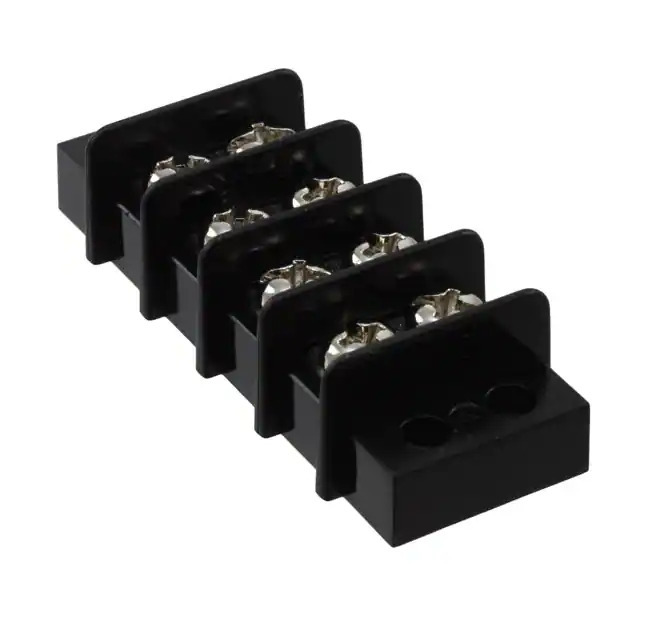

1546306-4 TE Connectivity
Same model may have multiple batches, images only for reference.

1546306-4

Part No 1546306-4
Manufacturer TE Connectivity
Catalog Terminal Blocks
Description CONN BARRIER STRIP 4CIRC 0.374" / 4 Circuit 0.374" (9.50mm) Barrier Block Connector Screws
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminal Blocks - Barrier Blocks
Mfr TE Connectivity AMP Connectors
Series Buchanan
Package Bulk
Product Status Active
Terminal Block Type Barrier Block
Number of Circuits 4
Number of Wire Entries 8
Pitch 0.374" (9.50mm)
Number of Rows 2
Current Rating (Amps) 20A
Voltage Rating 300V
Wire Gauge 12-22 AWG
Top Termination Screws
Bottom Termination Closed
Barrier Type 2 Wall (Dual)
Features Flange
Color Black
Terminal Screw Material Steel
Terminal Screw Finish Nickel
Mounting Type Chassis, Panel
Temperature Range - Operating -40°C ~ 120°C
Material - Insulation Thermoplastic
Material Flammability Rating UL94 V-0
Base Product Number 1546306
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1365215-1546306-4
Ultra Librarian 3D Model Ultra Librarian 1546306-4 CAD Model

Description

The TE Connectivity AMP Connectors Buchanan Barrier Block is a high-quality terminal block used in various electronic applications.

  • Temperature Range: -40°C to 120°C
  • Current Rating: 20A
  • Wire Gauge: 12-22 AWG
  • Color: Black
  • Feature: Flange
  • Voltage Rating: 300V
  • Pitch: 0.374" (9.50mm)
  • Insulation Material: Thermoplastic
  • Flammability Rating: UL94 V-0
  • Circuits: 4
  • Wire Entries: 8
  • Top Termination: Screws
  • Bottom Termination: Closed
  • Design: Dual 2 Wall Barrier
  • Screw Material: Steel with Nickel Finish
  • Manufacturer: TE Connectivity AMP Connectors
