Same model may have multiple batches, images only for reference.

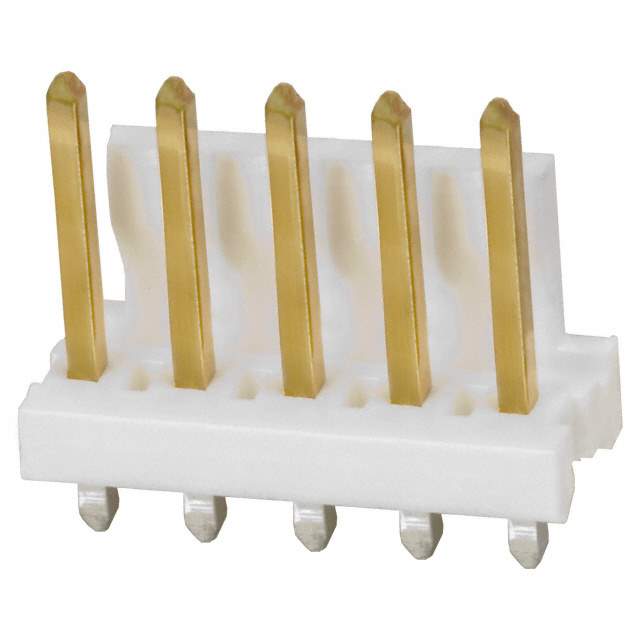

3-641208-5 Real Image
Same model may have multiple batches, images only for reference.

3-641208-5

Part No 3-641208-5
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER 5POS .156 30 GOLD
Datasheet
3-641208-5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Series MTA-156
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.156" (3.96mm)
Style Board to Cable/Wire
Shrouding Shrouded - 1 Wall
Number of Positions 5
Number of Positions Loaded All
Number of Rows 1
Mounting Style Through Hole
Termination Solder
Fastening Type Friction Lock
Contact Length - Mating 0.400" (10.16mm)
Contact Length - Post 0.125" (3.18mm)
Overall Contact Length 0.650" (16.51mm)
Insulation Height 0.425" (10.80mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30μin (0.76μm)
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Thermoplastic, Glass Filled
Operating Temperature Range -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating Varies by Wire Gauge
Voltage Rating 600VAC
Applications General Purpose, Industrial
Win Source Part Number 764464-3-641208-5
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 3-641208-5 CAD Model

Description

The TE Connectivity AMP Connectors MTA-156 series is a high-quality connector designed for use in electronic devices.

  • Type: Header
  • Termination: Male Pin
  • Mounting: Through Hole
  • Contact Finish: Gold
  • Packaging: Bulk
  • Applications: General Purpose, Industrial
  • Voltage Rating: 600VAC
  • RoHS: Compliant
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited Shelf Life)
  • HTSUS Code: 8536.69.4040
  • Popularity: Medium
  • Supply/Demand Status: Balanced
