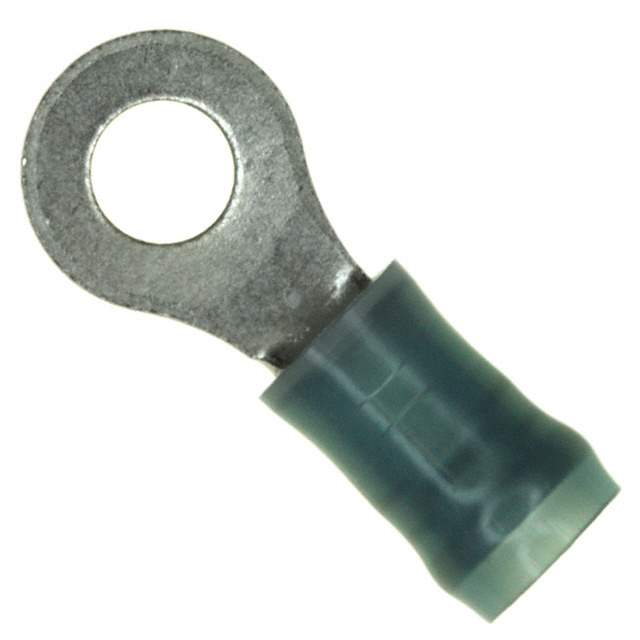

320565 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Ring Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Terminal Type Circular
Stud/Tab Size 8 Stud
Thickness 0.031" (0.79mm)
Width - Outer Edges 0.343" (8.71mm)
Length - Overall 0.859" (21.82mm)
Mounting Free Hanging (In-Line)
Termination Crimp
Wire Gauge 14-16 AWG
Insulation Insulated
Features Serrated Termination
Color Blue
Contact Material Copper
Contact Finish Tin
Insulation Diameter 0.115" ~ 0.170" (2.92mm ~ 4.32mm)
Material - Insulation Polyamide (PA), Nylon
Base Product Number 3205
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number A1071,-320565-SI,31902,2266-320565,Q8781672,-320565-LSI
Standard Package 1,000
Win Source Part Number 1333670-320565
Ultra Librarian 3D Model Ultra Librarian 320565 CAD Model

Description

The TE Connectivity AMP Connectors 320565 is a blue ring connector with serrated termination.

  • Termination Style: Crimp
  • Contact Finish: Tin
  • Wire Gauge: 14-16 AWG
  • Contact Material: Copper
  • Insulation Material: Polyamide (PA), Nylon
  • Insulation Diameter: 0.115" ~ 0.170" (2.92mm ~ 4.32mm)
  • Stud/Tab Size: 8 Stud
  • Standard Package: 1,000
  • Mounting: Free Hanging (In-Line)
  • Thickness: 0.031" (0.79mm)
  • Width of Outer Edges: 0.343" (8.71mm)
  • Overall Length: 0.859" (21.82mm)
  • Insulation: Insulated
