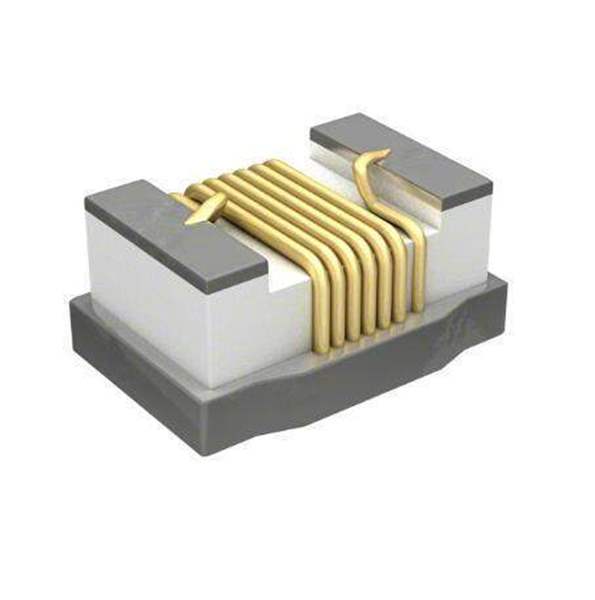

Same model may have multiple batches, images only for reference.

36502AR47JTDG

Name: 36502AR47JTDG
Brand: TE Connectivity
SKU: WS1208176
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	36502AR47JTDG
Manufacturer	TE Connectivity
Catalog	Fixed Inductors
Description	FIXED IND 470NH 220MA 1.7OHM SMD
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Win Source Part Number	Cross
Manufacturer	TE Connectivity Passive Product
Category	Inductors, Coils, Chokes Fixed Inductors
Product Status	Active
Type	Wirewound
Current Rating (Amps)	220 mA
Shielding	Unshielded
DC Resistance (DCR) (Max)	1.7Ohm Max
Frequency - Self Resonant	375MHz
Operating Temperature	-40°C ~ 125°C
Inductance Frequency - Test	250 MHz
Win Source Part Number	WS1208176-36502AR47JTDG
Ultra Librarian 3D Model	Ultra Librarian 36502AR47JTDG CAD Model

Alternative Products

Description

TE Connectivity is proud to announce that the 3650 Series wire wound Low Inductance, High Frequency Chip Inductor (standard version) is now AEC-Q200 Qualified. The 3650 is available in four package sizes, includes High Current and High Q versions and is designed for automatic placement. Please note; These products are now supplied unmarked.
