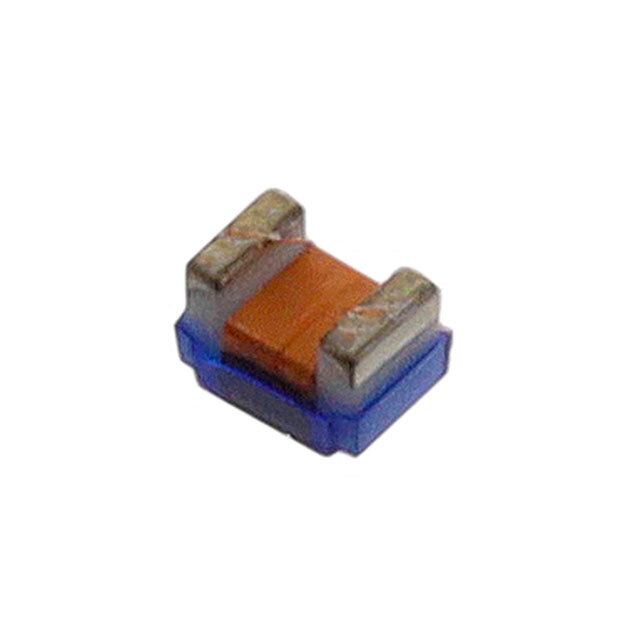

36502C5N6JTDG

Part No 36502C5N6JTDG
Manufacturer TE Connectivity
Catalog Fixed Inductors
Description FIXED IND 5.6NH 1A 150 MOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Type Wirewound
Material - Core Ceramic
Inductance 5.6 nH
Tolerance ±5%
Current Rating (Amps) 1 A
Shielding Unshielded
DC Resistance (DCR) 150mOhm Max
Q @ Freq 50 @ 1.5GHz
Frequency - Self Resonant 4GHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 50 MHz
Mounting Type Surface Mount
Case / Package 1008 (2520 Metric)
Supplier Device Package 1008 (2520 Metric)
Size / Dimension 0.115" L x 0.110" W (2.92mm x 2.79mm)
Height - Seated (Max) 0.083\
Package Tape & Reel
Supply and Demand Status Shortage
Win Source Part Number 1531130-36502C5N6JTDG
Ultra Librarian 3D Model Ultra Librarian 36502C5N6JTDG CAD Model
