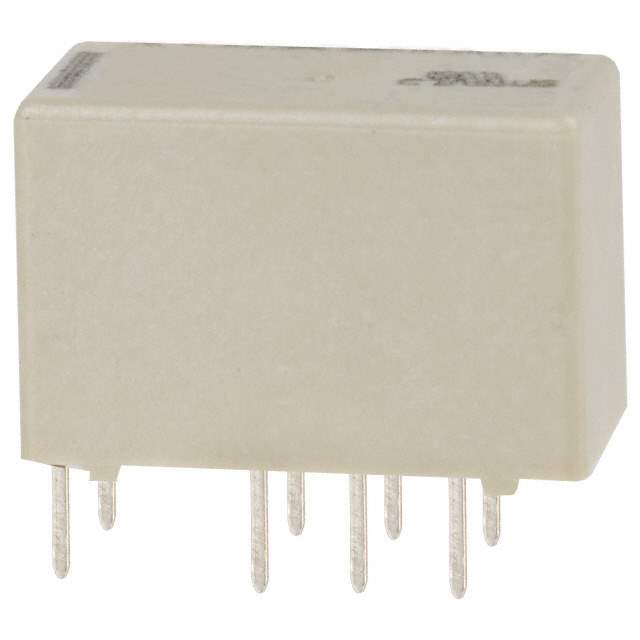

4-1393788-8 Real Image
Same model may have multiple batches, images only for reference.

4-1393788-8

Part No 4-1393788-8
Manufacturer TE Connectivity
Catalog Signal Relays, Up to 2 Amps
Description Electromechanical Relay 12VDC 2.057KOhm 2A DPDT (14.5x7.2x9.8)mm THT Signal Relay
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Ambient Temperature Range High 85 °C
Approvals UL
Mounting SMD (SMT)
Case / Package DIP
Coil Current 5.8 mA
Coil Power 70 mW
Coil Resistance 2.057 kΩ
Coil Type Latching, Single Coil
Coil Voltage (DC) 12 V
Contact Current Rating 2 A
Contact Material Gold
Contact Plating Gold
Contact Voltage Rating (DC) 220 V
Current Rating 2 A
Depth 7.2 mm
ELV Compliant
Height 9.8044 mm
Insertion Loss (dB) 0.27 dB
Length 14.5034 mm
Max Current Rating 2 A
Maximum Operating Temperature 85 °C
Max Voltage Rating (AC) 250 V
Max Voltage Rating (DC) 220 V
Min Operating Temperature -40 °C
Mount PCB, Through Hole
Number of Contacts 2
Number of Pins 8
Number of Poles 2
Operate Time 4 ms
Packaging Box
Power Consumption 70 mW
REACH SVHC Unknown
Relay Type Relay
Release Time 4 ms
RoHS Compliant
Switching Current 5 A
Termination PCB
Throw Configuration DPDT
Voltage Rating (DC) 12 V
Weight 2.800933 g
Width 7.2 mm
Win Source Part Number 1103596-4-1393788-8
Categories Signal Relays,Up to 2 Amps
Manufacturer TE Connectivity
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 4-1393788-8 CAD Model

Description

The TE Connectivity 1103596-4-1393788-8 is a latching, single coil type of relay that has two poles and two contacts. It has a current rating of 2A and a contact material of gold.

  • Latching Type: Latching, Single Coil
  • Number of Poles: 2
  • Number of Contacts: 2
  • Current Rating: 2A
  • Contact Material: Gold
  • Coil Resistance: 2.057 kΩ
  • Coil Current: 5.8 mA
  • Contact Current Rating: 2A
  • Operate Time: 4ms
  • Release Time: 4ms
  • Throw Configuration: DPDT
  • Switching Current: 5A
  • Voltage Rating: 12VDC
  • Maximum Voltage Rating: 220VDC
  • Maximum Operating Temperature: 85°C
  • Minimum Operating Temperature: -40°C
  • Mounting Type: Surface Mount
  • ELV Compliant: Yes
  • RoHS Compliant: Yes
