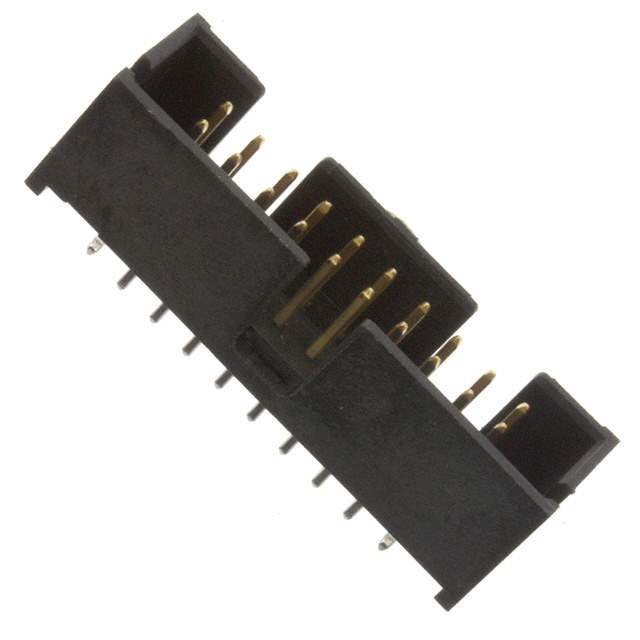

Same model may have multiple batches, images only for reference.

5104338-4

Name: 5104338-4
Brand: TE Connectivity
SKU: 1024283
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	5104338-4
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 20POS 2.54MM / Connector Header Through Hole 20 position 0.100" (2.54mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	TE Connectivity AMP Connectors
Series	AMP-Latch
Package	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	20
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Kinked Pin, Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.240" (6.10mm)
Contact Length - Post	0.120" (3.05mm)
Insulation Height	0.385" (9.78mm)
Contact Shape	Square
Contact Finish - Mating	Gold or Gold-Palladium
Contact Finish Thickness - Mating	15.0µin (0.38µm)
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polyphthalamide (PPA), Glass Filled
Features	Keying Slot
Temperature Range - Operating	-65°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	1A per Contact
Contact Finish Thickness - Post	100.0µin (2.54µm)
Base Product Number	5104338
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	51043384,-5104338-4-SI,A33176
Standard Package	75
Win Source Part Number	1024283-5104338-4
Ultra Librarian 3D Model	Ultra Librarian 5104338-4 CAD Model

Alternative Products

Description

The TE Connectivity AMP Connectors 1024283-5104338-4 is a male pin header connector that belongs to the AMP-Latch series.

Series: AMP-Latch
Positions: 20
Contact Type: Male Pins
Rows: Two
Termination: Kinked Pin, Solder
Fastening Type: Push-Pull
Contact Material: Brass
Contact Finish: Gold or Gold-Palladium
Voltage Rating: Not Specified
Ingress Protection: Not Provided
Insulation Material: Polyphthalamide (PPA), Glass-Filled
Insulation Color: Black
Mounting Type: Through-Hole
Shrouding: Shrouded with 4 Walls
Temperature Range: -65°C to 105°C
